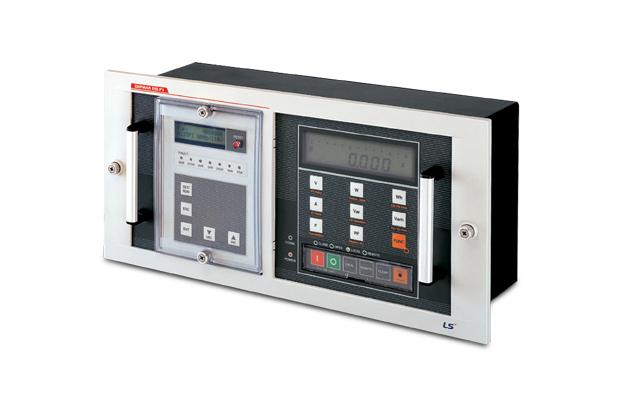

product Image
Protection
Model Name
GIPAM115
Series
Protection/Measurement/Meter (Device)
Data
Catalog-LS ELECTRIC-Digital Protection Measurement
Manufacturer information
provider logo
LS ELECTRIC

Smart Power Solution, Low Voltage, Smart Automation Solution, PLC, Smart Railway Solution, Signaling System and more

Problem with product info?
Update request
Manufacturer
LS ELECTRIC
Brand
-
SKU
133002
Product Name
Protection
Model Name
GIPAM115
Size
-
Weight
-
Product Details

GIPAM115

Economic multifunction digital power protection monitoring device with various protection and measurement elements.



Features

Protection Function

ㆍVarious protection factor (9 protection factors)

ㆍEvent and fault recording (Max 160 recordings)

ㆍVarious measurements and monitoring functions (1 measurement)



Convenience Function

ㆍSelf diagnosis function

ㆍEasy maintenance of equipment



Communication Function

ㆍVarious communication compatibilities



Protection factor

Functions Operation element Setting range Operating time characteristics Remarks
Setting range Characteristics
OCR [50/51] Instantaneous OFF, 2~24In / 1In 0.04~60.0s / 0.01s Definite time
Time-delay OFF, 0.2~10.0In / 0.1In 0.05~1.20 / 0.01 Definite time 3 types
  Inverse time 4 types
D2, D4, D8 ,SI, VI, EI, LI
OCGR [50/51N] Instantaneous OFF, 0.5~8.0In / 0.5In 0.04~60.0s / 0.01s Definite time Block time : 0.1~60.0s/0.1s
Time-delay OFF, 0.1~0.5In / 0.02In 0.05~1.20 / 0.01 Definite time 3 types
Inverse time 4 types
OVR [59] Time-delay(high) OFF, 0.80~1.60Vn / 0.02Vn 0.1~60.0s / 0.01s Definite time
Time-delay(Low) OFF, 0.80~1.60Vn / 0.02Vn 0.1~60.0s / 0.01s Definite time
UVR [27] Time-delay(high) OFF, 0.20~0.90Vn / 0.02Vn 0.1~60.0s / 0.01s Definite time Outage lock : (below 15V)
Time-delay(Low) OFF, 0.20~0.90Vn / 0.02Vn 0.1~60.0s / 0.01s Definite time
OVGR [64G] Time-delay(high) OFF, 0.10~0.40Von / 0.02Von (Von=190V) 0.1~60.0s / 0.01s Definite time
Time-delay(Low) OFF, 0.10~0.40Von / 0.02Von (Von=190V) 0.1~60.0s / 0.01s Definite time
SGR [67G] Zero-phase current(Io) OFF, 0.6~3.6Ion / 0.2Ion
(Ion=1.5mA)
0.1~60.0s / 0.01s Definite time
Zero-phase voltage(Vo) 0~0.40Von / 0.02Von
(Von=190V)
RCA 45。 fixed
POR [47] Time-delay(high) OFF, 5~100% / 1% 0.1~60.0s / 0.01s Definite time
Time-delay(Low) OFF, 5~100% / 1% 0.1~60.0s / 0.01s Definite time



Specification

Type Specification
Wiring   1P2W, 1P3W, 3P3W, 3P4W
Input Frequency  60Hz/50Hz
Voltage PT  110V/100V
GPT  190V
Current CT  5A
ZCT  200/1.5mA
Control Voltage   DC 110/125V, AC 110V 50/60Hz (or AC/DC 88V~132V)
Power Consumption   Steady: 15W Max. Operating: 70W Max.
Burden PT  Max. 0.5VA
CT  Max. 1.0VA
Input Contact 3EA   Digital Input : AC/DC 110V
Output Contact 2EA for Power  AC 250V 16A / DC 30V 16A, Resistive Load 4000VA, 480W
8EA for Alarm (7a 1c)  AC 250V 5A / DC 30V 5A, Resistive Load 1250VA, 150W
Insulation Resistance  Over DC 500V 100㏁
Insulation Voltage   AC 2kV (1kV) / for 1 min
Impulse Voltage   AC 5kV (3kV) Over 1.2 × 50㎲
Overload Withstand Current circuit  2 In for 3 hours
 20 In for 2 seconds
Voltage circuit  1.15 Vn for 3 hours
Fast Transient Disturbance   Power Input 4kV
 Other Input 2kV (Analog input 1kV)
ESD (Electrostatic Discharge)   Air 8kV
 Contact 6kV
Operation temperature   -10℃ ~ 55℃
Storage Temperature   -25℃ ~ 70℃
Humidity   Within 80% RH, no condensation
Altitude   1000m and below
Others   Non-impact place
 Non-air pollution place
Standard   IEC 60255, IEC 61000-4, KEMC 1120
Dimension (W×H×D)   437×210×165 mm
Weight   10.5kg
