Model Name
GIMAC-IV
Series
Protection/Measurement/Meter (Device)
Data
Manual-LS ELECTRIC-Measurement-GIMAC-IV
Manufacturer information
provider logo
LS ELECTRIC

Smart Power Solution, Low Voltage, Smart Automation Solution, PLC, Smart Railway Solution, Signaling System and more

Problem with product info?
Update request
Manufacturer
LS ELECTRIC
Brand
-
SKU
133008
Product Name
Measurement
Model Name
GIMAC-IV, GIMAC-415
Size
-
Weight
-
Product Details

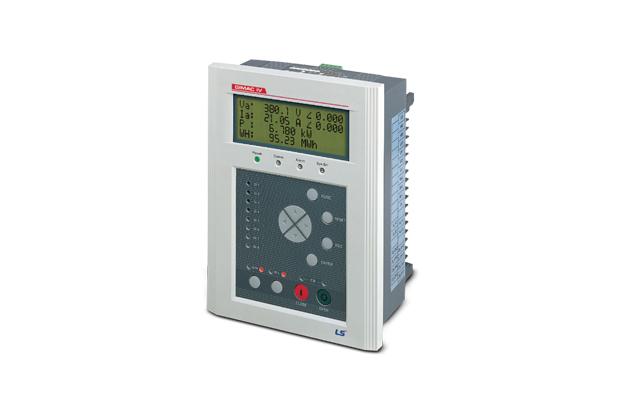

GIMAC-IV

Premium multifunction digital integrated metering and control device - 20x4 LCD type.



Features

Measurement Function

ㆍHigh precision measurement of various measurement elements (27 elements)

ㆍExtended power quality measurement (63th, THD)

ㆍEvent recording (300 samples)

ㆍSelect Before & Check Before Operating (CBO) functions

ㆍImproved precision through a digital filter

ㆍAnalog input (2 points, optional)

ㆍCapacitor bank (8 banks)

ㆍOptimal power factor control

ㆍEfficient maximum demand power management

ㆍAutomatic Power Factor Control (APFC), (optional)



Convenience Function

ㆍVarious self-diagnosis functions



Communication Function

ㆍVarious communication functions (1 ports)



Measurement

Model Measurement Display range Accuracy Remarks
GIMAC-415 Current, I 0.000A ~ 999.99kA ±0.2% Ia, Ib, Ic, In
Voltage, V 0.000V ~ 999.99kV ±0.2% Va, Vb, Vc, Vab, Vbc, Vca
Active power, Watts 0.000W ~ 99999.9MW ±0.5% + : Forward
- : Reverse
Reactive power, Var 0.000Var ~ 99999.9MVar ±0.5%
Apparent power, VA 0.000VA ~ 99999.9MVA ±0.5%
Active energy, Wh 0.000Wh ~ 99999.9MWh ±0.5%
Reactive energy, Varh 0.000Varh ~ 99999.9MVarh ±0.5%
Frequency, F 45 ~ 70Hz ±0.05Hz
Power factor, PF -1.000 ~ 1.000 ±0.5% cosø (+ : Lag, - : Lead)
Phase 0.000。~ 360.00。 ±0.5。
Normal current, I1 0.000A ~ 999.99kA
Reverse phase current, I2 0.000A ~ 999.99kA
Zero phase voltage, Vo 0.000V ~ 999.99kV ±0.5% Vo, Vo_max
Normal voltage, V1 0.000V ~ 999.99kV
Reverse phase voltage, V2 0.000V ~ 999.99kV
Unbalanced factor 0.000 ~ 100.00%
Harmonics I 0.000A ~ 999.99kA   2nd ~63th
Harmonics V 0.000V ~ 999.99kV   2nd ~63th
Demand I 0.000A ~ 999.99kA   Peak demand
Demand W 0.000W ~ 99999.9MW   Peak demand
AI (Analog Input) DC 4.000 ~ 20.00mA ±0.5%



Specification

Type Specification
Wirings  1P2W, 1P3W, 3P3W, 3P4W
Input Frequency  50Hz/60Hz
Voltage PT  10~230V
GPT  2.2~230V
Current CT  0.05~6A
Control Voltage   AC/DC 110V or AC/DC 220V
Power Consumption  Max. 30W
Burden PT  Max. 1.0VA
CT  Max. 1.0VA
Input contact 10EA   Digital Input : AC/DC 110V or AC/DC 220V
Output contact 2EA for power  AC 250V 16A/DC 30V 16A
 3840VA/480W
8EA for alarm  AC 250V 16A/DC 30V 16A
 3840VA/480W
Insulation Resistance  Over DC 500V 100㏁
Insulation Voltage   AC 2kV (1kV) / for 1 min
Impulse Voltage   AC 5kV (3kV) Over 1.2×50㎲
Overload Withstand Current circuit  1.2 In for 3 hours
 8 In for 2 seconds
Voltage circuit  1.15 Vn for 3 hours
Fast Transient/Burst Immunity   Power Input 4kV (PT, CT)
 Other Input 2kV (Analog Input 1kV)
ESD (Electrostatic Discharge)   Air 8kV
 Contact 6kV
Operation temperature   -10℃ ~ 55℃
Storage Temperature   -25℃ ~ 70℃
Humidity   Within 80% RH, no condensation
Altitude   2000m and below
Others   Non-impact place
 Non-air pollution place
Standard  IEC 60255, IEC61000-4, KEMC 1110
Communication  MODBUS/RS485, DNP3.0
Dimension (W×H×D)  190×255×116 (mm)
Weight  3.6kg
