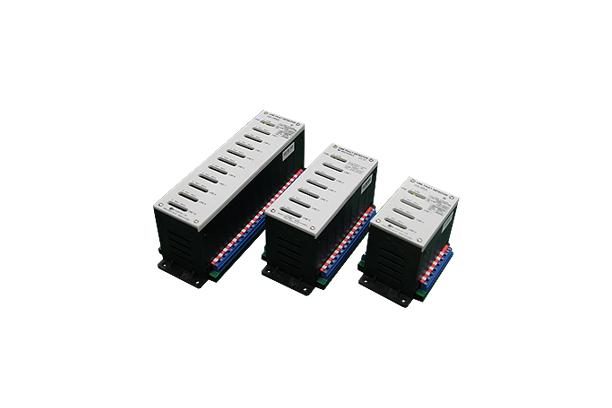

Line Fault Detector
Type Approval : BV
The line fault detector, as a device to monitor the open/short circuit of the cable of emergency system, is a alarm device to display the information of open/short circuit on it and to send the dry-contact signal output to external system in case the open/short circuit of the cable of the switching system occurs.
As special features, the exterior materials have high insulation level, light weight, fire retardant, shock resistant and chemical resistant characteristics to endure the harsh environment such as shipyard, power plant, steelworks, petrochemical complex and water power plant etc..
ORDERING INFORMATION
SPECIFICATIONS
POWER RATING | AC 100~240V 1Φ 50 / 60Hz | |
POWER VARIATION | AC 85~264V 1Φ 50 / 60Hz | |
INPUT SIGNAL | TYPE | R1 : "a" contact with resistor 1/2W 1kΩ S1 : 1/2W 10kΩ, 2pcs |
LOOP CURRENT | Below 10mA per each point | |
CABLE LENGTH | Within 500m [Above 1.25 SQ] | |
OUTPUT SIGNAL | 2NDARY ALARM OUTPUT | "1C" dry contact [DC 30V 1A / 125V AC 0.5A, p.f=1]from common |
TRIPPING CONTACT | "1a" dry contact [DC 30V 5A / 250V AC 5A, p.f=1] from alarm | |
FAULT ALARM DELAY TIME | 2.5sec.[±0.1sec] | |
2NDARY ALARM DELAY TIME | 2.5sec.[±0.1sec] | |
INSULATION RESISTANCE | Above 200MΩ between live part and enclosure | |
SURGE TRANSIENT | 1kV 50uVs line / line 0.5kV 50uVs line / line [IEC 1000-4-5 / 1995] |
