Phase : 1Ø, 3Ø
Frequency : 50Hz / 60Hz
Voltage : AC110 / 220 / 380 / 440V
The essential device that allows reliable electricity may occur, such as voltage fluctuations, frequency fluctuations electrical supply failure or interruption from power plants can used.
Equipment for high-efficiency, and to supply stable power to the high accuracy by using a power source stored in the usual place on the power of the battery stored in the battery when a failure occurs at the same time.
Has the convenience of users can be implemented by a attached to the front touch screen various control and alarm operations.

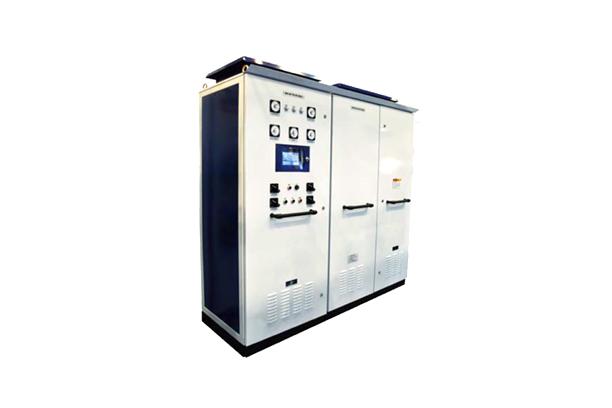

AC-UPS with UPC SERIES controller, as a device to be used for emergency power supply, is a multi-functional and high-performance product that supplies the high-quality AC power by adopting the IGBT control technology when a black-out is occurred in AC power.
As special features, the real time status for the product is discernible by watching the output voltage and the output current with the wide angle analog meter on the front door. And the perfect insulation between input and output is realized by applying the isolation transformers.
ORDERING INFORMATION
SPECIFICATIONS
DESCRIPTION | STANDARD SPECITICATION | ||
GENERAL | PHASE | 1Φ / 3Φ | |
CAPACITY | 10 / 20 / 30 / 50 / 100 / 200k VA | ||
COOLING | FORCED AIR COOLING | ||
OPERATION MODE | 100% CONTINOUS | ||
RECTIFIER & CHARGER | CONTROL | THYRISTOR PHASE CONTROL | |
SEMICON | I.G.B.T PWM | ||
INPUT | INPUT VOLTAGE | 110 / 220 / 380 / 440Vac | |
VOLTAGE RANGE | ± 10% | ||
INPUT FREQUENCY | 50 / 60Hz, ±5% | ||
OUTPUT | OUTPUT VOLTAGE | 110 / 220Vac | |
OVERLOAD DURATION | 120%, 10min. | ||
THD | < 3% | ||
AUDIBLE NOISE | WITHIN 60 dBA | ||
FREQUENCY RANGE | ±1Hz | ||
CREST FACTOR OF LOAD CURRENT ON NON-LINEAR LOAD | 2.8:1 | ||
INSTALLATION ALTITUDE | WORKING : UNDER 2000m ABOVE THE SEA LEVEL KEEPING : UNDER 2000m ABOVE THE SEA LEVEL | ||
INSTALLATION TEMPERATURE | WORKING : 0 ~ 45℃ | ||
KEEPING : -20 ~ 60℃ | |||
INSTALLATION HUMIDITY | RELATIVE HUMIDITY 10 ~ 95℃ | ||
DC VOLTAGE | 120 / 240V DC | ||
BATTERY | TYPE | Lead Acid / Ni Cd | |
INSTALLATION | CABINET TYPE |
