Output Voltage
NORNINAL DC 24V

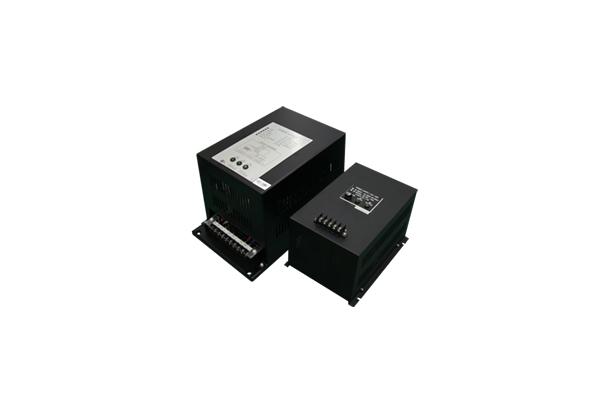

The power supply unit is a device to convert the AC power to DC power.
It supplies DC 24V power by converting the single/three phase AC power, and can be used for whole industry.
As special features, it can supply constant power by using battery in case of AC black-out.
For user's convenience, the status of input/output is displayed on the front side of the unit.
Specifications
MODEL | INPUT | OUTPUT | SIZE(mm) | TRANSFORMER |
---|---|---|---|---|
SA-132 | AC220V 1PH 60Hz | DC24V 5.5A | W163 X H225 X D130 | INTERIOR |
SA-250 | AC440V 3PH 60Hz | DC24V 10A | W180 X H250 X D170 | INTERIOR |
SA-520 | AC440V 3PH 60Hz | DC24V 20A | W180 X H300 X D180 | INTERIOR |
SA-960 | AC220V 3PH 60Hz | DC24V 40A | W204 X H310 X D160 | EXTERIOR |
