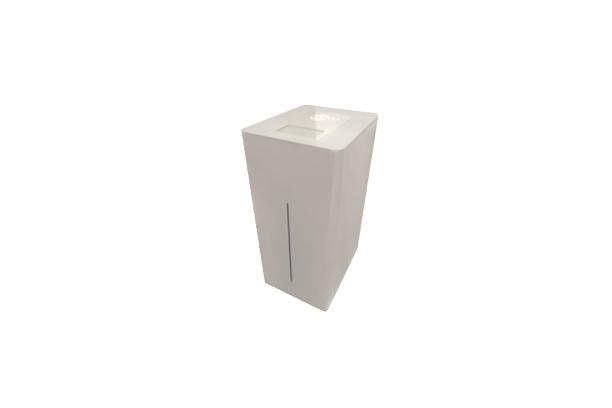

ESS (Energy Storage System) consists of MPPT-based DC-DC converter., bidirectional DC-DC converter, bidirectional inverter and batter.
DC power generated by solar module and AC input power supplied form grid are consumed in the load as well as stored in the battery/
By storing the surplus energy, the ESS can supply the energy when it is needed. Therefore, the ESS can play a role on UPS
Model | EH5000DC1B-10k | EH3000DC1B-4K | |
---|---|---|---|
System Overview | Rated Voltage | 220/230 VAC(Single-phase) | <- |
Energy Capacity | 10 kWh | 4 kWh | |
System Specification | Efficlency | More than 90% | <- |
THD | Less than 5% | <- | |
Power Factor | More than 0.98 | <- | |
Solar Input | Input Voltage | 150~450 VDC | <- |
Normal Voltage | 310 VDC | 346 VDC | |
Initial Feeding Voltage | 150 VDC | <- | |
Maximum Input Current | 17 A | 8.5 A | |
AC Input | Input Voltage | 220 / 230 ± 10% | <- |
Output | Rated Power | 5 kVA | 3 kVA |
Rated Voltage | 220 / 230 VAC | <- | |
Frequency | 50/60 ± 0.1Hz | <- | |
Maximum Output Current | 22.8 A | 14 A | |
Battery Data | Type | Lithium-Ion | <- |
Voltage | 200 ~ 240 VDC | ||
Maximum Charging Current | 20A | 10A | |
Enclosure | Operating Temperature | -10 ~ 45ºC | <- |
Relative Humidity | Less than 90% | <- | |
Dimensions | 450 x 1000 x 550 mm | <- | |
Weight (Maximum) | 180kg | 120kg |
