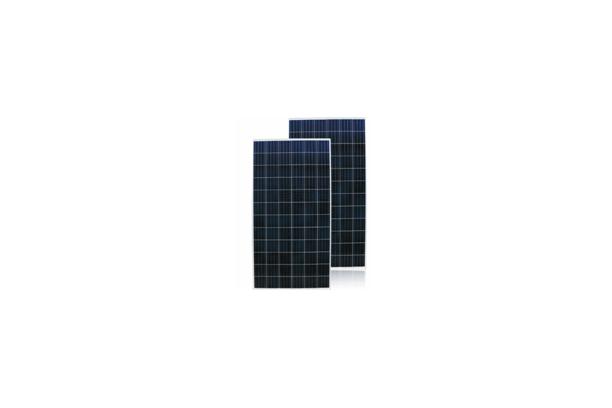

product Image
Multi crystalline Module
Model Name
LXP 72 Cell Series
Series
Solar Div.
Data
카탈로그-럭스코-태양광산업-다결정 태양광 모듈-LXP 72 Cell Series
Manufacturer information
provider logo
LUXCO

Electric electronic apparatus for Vessel & Industrial plant facility, Solar module manufacturing development

Problem with product info?
Update request
Manufacturer
LUXCO
Brand
-
SKU
129208
Product Name
Multi crystalline Module
Model Name
LXP 72 Cell Series, LXP-4L330E2, LXP-4L335E2, LXP-4L340E1, LXP-4L345E2
Size
-
Weight
-
Product Details

Luxco Multi crystalline module

Cell Type : Multi Crystalline Silicon
Cell Dimensions : 156 x 156㎟ (6x6 in²)



Type Specifications

Type

module

P MAX

Efficiency(%)

Remark

72Cell Series

LXP-4L330E2

330

17.03

LXP-4LxxxE1/2(330~345Wp)

LXP-4L335E2

335

17.29

LXP-4L340E1

340

17.55

LXP-4L345E2

345

17.81




Electrical Characteristics

CharacteristicsUnit330335340345
Rated Power at STC(Pmax.)W330335340345
Max.Power Voltage (Vmp)V38.538.839.039.3
Max.Power Current (Imp)A8.588.648.728.78
Open Circuit Voltage (Voc)V45.946.246.446.7
Short Circuit Current (Isc)A9.139.199.289.36
Efficiency%17.0317.2917.5517.81
Maximum System VoltageVDC1,000(TUV)
Maximum Series Fuse RatingA15
Maximum Series Diode RatingA15
Power ToleranceW0~5W



Mechanical Characteristics

Cell Type

Multi Crystalline Silicon

Cell Dimensions

156.75 x 156.75mm2 /(6X6in2)

No.of Cells and Connections

72(6x12)connected in Series

Weight

22.5kg

Operatiog Temperature

-40 to+80℃

Connector Type

MC4 compatible

Junction Box

IP67 grade

Output Cable

2 x 1200mm / 2 x 47.2inch length

Fire Resistance Rating

Class C

Application Class

Class A

Structural Load

5400 Pa



Temperature Coefficients

Nominal Operation Cell Temp.(NOCT)

45±2℃

The Coefficient of Pmax.

%/℃

-0.41

The Coefficient of Voc

%/℃

-0.32

The Coefficient of Isc

%/℃

0.05

* Module specifications are subject to change without notice.

* STC (Standard Test Conditions) :25℃, 1000W/㎡, AM1.5

* The electrical properties measured and determined by LUXCO at its sole and absolute discretion.




Module Diagram
