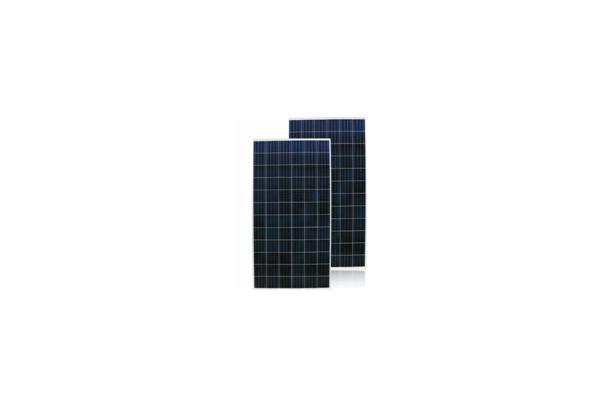

Luxco Mono crystalline module
Cell Type : Mono Crystalline Silicon
Cell Dimensions : 156.75 x 156.75㎟ (6x6 in²)
Type Specifications
Type | module | P MAX | Efficiency(%) | Remark | ||
72Cell Series | 340 | 340 | 17.55 | LXS-4LxxxW1/2(340~360Wp) | ||
345 | 345 | 17.81 | ||||
350 | 350 | 18.06 | ||||
355 | 355 | 18.32 | ||||
360 | 360 | 18.58 |
Electrical Characteristics
Characteristics | Unit | 340 | 345 | 350 | 355 | 360 |
---|---|---|---|---|---|---|
Rated Power at STC(Pmax.) | W | 340 | 345 | 350 | 355 | 360 |
Max.Power Voltage (Vmp) | V | 38.8 | 39.1 | 39.4 | 39.8 | 40.2 |
Max.Power Current (Imp) | A | 8.77 | 8.83 | 8.89 | 8.92 | 9.00 |
Open Circuit Voltage (Voc) | V | 46.6 | 46.8 | 47.1 | 47.3 | 47.5 |
Short Circuit Current (Isc) | A | 9.52 | 9.53 | 9.55 | 9.56 | 9.57 |
Efficiency | % | 17.55 | 17.81 | 18.06 | 18.32 | 18.58 |
Maximum System Voltage | VDC | 1,000 | ||||
Maximum Series Fuse Rating | A | 15 | ||||
Maximum Series Diode Rating | A | 15 | ||||
Power Tolerance | W | 0~5W |
Mechanical Characteristics
Cell Type | Mono Crystalline silicon |
Cell Dimensions | 156.75X156.75 mm² |
No.of Cells and Connections | 72(6x12)connected in Series |
Weight | 22.5kg |
Operatiog Temperature | -40 to+80℃ |
Connector Type | MC4 compatible |
Junction Box | IP67 grade |
Output Cable | 2 x 1200mm / 2 x 47.2inch length |
Structural Load | 5400 Pa |
Temperature Coefficients
1. Generated amount’s increased by low water temperature.
- 3 ~ 5 % Generating amount’s increased, comparing to land installation.
2. Used eco-friendly materials
- Heavey metal / acid free
3. Secured public confidence by certificates
- Damp Heat 3,000h Test Pass
- Temperature Cycle 200 Test Pass
- Mechanical Load 5,400 Pa Test Pass
- Potential Induced Degradation Test Pass(NREL PID TEST Standard)
Module Diagram
