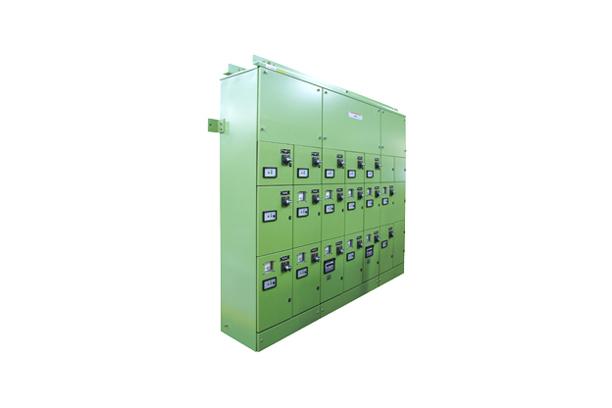

Local Group Starter Panel
A company product that minimizes an installation space inside a ship. Maintenance and repair works on each starter unit can be done in the front on the rear of the panel
1. Leading in and out of cables is possible at its upper and lower parts.
2. The installation of an extra wire duct and the separation of the control terminal block from the power terminal block maximize safety and accessibility.
3. Each starter unit is standardized according to the capacity of the motor and the control system so that switchboard additions and unit arrangements are east.
Local Group Starter Panel - Construction (Fixed type)
Features | HGS7BB | HGS7BF | HGS7BW(Wall-Mounting) |
---|---|---|---|
Applicable Standard | IEC 60439-1,bs5486,VDE 0600-500 | ||
Regulation | ABS,BV,DNV,GL,KR,LRS,NVE,RINA,NK,IEEE45 | ||
Rated Voltage | 500V AC (Up to 690V AC, Option) | ||
Themal Withstand | Up to 130k A rms/1 sec | ||
Electronic Dynamic Withstand | Up to 330k A,ASYM,Peak | ||
Frame Work | Formed sheet steel or substantial box-frame | ||
Access | Front and Rear | Front | Front |
Protection Degree | IP21 (Up to IP44) | ||
Power Line Inlet | Bottom | Bottom / Upper |
