Product Details

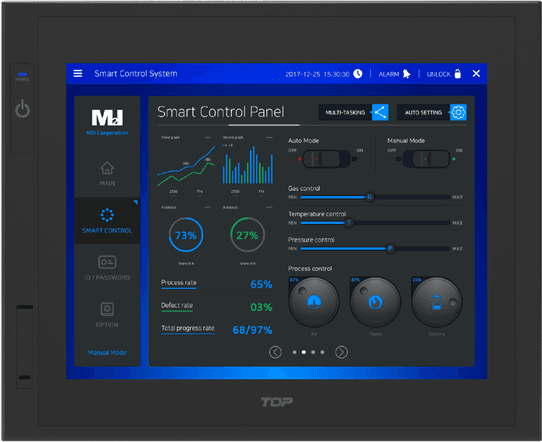

TOP-PCVIEW1010X

◆ PC Based HMI

- 10", 16M Full Color, 1024x768

- Intel Core-i3 탑재

- Windows Embedded Standard7 탑재

- Aluminum 본체

- SSD 256GB 기본 제공



이 컴퓨터는 전자파 적합성평가(인증)을 받은 내장 구성품을 사용하여 조립한 것으로 완성품에 대한 전자파 적합성 평가는 받지 않은 제품입니다. KC 인증 제품을 부품으로 사용한 경우 완성품에 대하여 별도의 인증이 면제됩니다.



1. 성능사양

System

CPU Core Intel Core-i3 4010U
CPU Speed Intel Core-i3: 1.7GHz (2C/4T)
Memory   DDR3L SO-DIMM 8GB
Storage  2.5' SSD 256GB
OS WES7 KOR 32/64 , ENG 32/64
System Utility * Acronis true image(Recovery System)

Display

Display Type TFT 10.4'
Color 16M Colors
Resolution 1024 x 768, XGA
Brightness Level  5 Level (Selected BIOS)
Backlight Type LED
Backlight Life Min. 50,000 hours
Touch Touch Type 4 wire analog resistive
Touch Life 1 million times or more

Interface

Serial COM1, COM2
* RS-232C Asynchronous
* Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even
* Baud rate: 2400~115.2kbps
* Connector: DSUB 9pin
Serial COM3, COM4 * RS-232C/422/485 Asynchronous (Selected BIOS)
* Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even
* Baud rate: 2400~115.2kbps
* Connector : DSUB 9pin & Terminal Block 5P  (Pitch 3.5mm)
Ethernet * IEEE802.3i/IEEE802.3u/IEEE802.3ab, 10BaseT/100BaseT/1000BaseT
* Connector: RJ-45 x 2
USB * USB 2.0 Compatible, Output 5Vdc/0.5A
Connector: USB Type A x 2
Connector: USB Type Micro B x 1
* USB 3.0 Compatible, Output 5Vdc/0.9A
Connector: USB Type A x 2
Power Button Electrostatic touch
VGA  1920 x 1200 at 60 Hz
HDMI OUT Max.4096 x 2304 at 24Hz
Audio  High Definition Audio (HD), Line-in, Line out, Mic-in





2. 일반사양

Environment

Operation Temperature(℃) 0 ~ + 60 °C (RH Non-Condensing)
Storage Temperature(℃) -40 ~ 85 °C and 60° C @ 95% RH Non-Condensing
Operation Humidity(%RH) 40°C @ 95% RH Non-Condensing
Atmosphere No corrosive gas
Vibration Endurance Amplitude: 10≤F<25Hz(4G), X,Y,Z each direction(for 30 minutes)
Noise Immunity 1000Vp-p (Pulse width 1㎲)
Static Electricity Discharge Connective discharge from EN61000-4-2: ±4㎸
Shock Endurance  10G X,Y,Z each direction(for 3 times)
Surge Voltage 500V(Line-Line)
Ground Connection Class 3(100Ω under)
Protection Classification Front Side: IP65, Rear Side: IP2X

Power

Input Voltage AC 100~240V, 50/60Hz or DC 20~28V
Voltage Sag Within 10㎳
Insulation Resistance 500V DC, 10㏁

Structure

External Dimension(㎜)  276 x 219.5 x 87.9
Panel Cut(mm)  260 x 202
Weight(㎏)  3.0
Cooling System Natural air circulation(Fanless)
Case Material METAL
