Touch Panel, Touch Display (PLC/HMI)

Touch Panel, Touch Display (PLC/HMI)

Model Name

TOP-PCVIEW1510X

Series

TOPPPC / TOPVIEW

View AllView All Series

Data

Manufacturer information

M2I CORPORATION

HMI Solution Provider, Industrial Touch Screen Manufacturer

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

M2I CORPORATION

Brand

SKU

131298

Product Name

Touch Panel, Touch Display (PLC/HMI)

Model Name

TOP-PCVIEW1510X

Size

Weight

Product Details

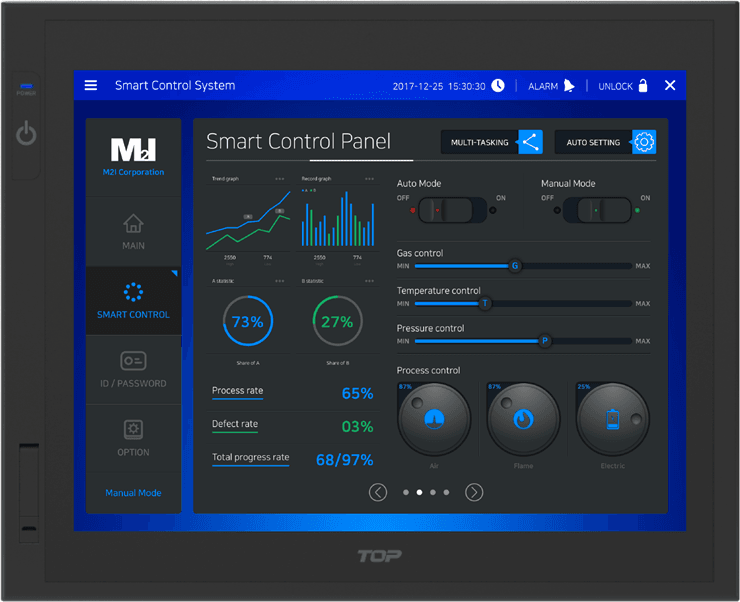

TOP-PCVIEW1510X

◆ PC Based HMI

- 15", 16M Full Color, 1024x768

- Intel Core-i3 탑재

- Windows Embedded Standard7 탑재

- Aluminum 본체

- SSD 256GB 기본 제공

- 2.5" 보조 저장장치 랙 제공

이 컴퓨터는 전자파 적합성평가(인증)을 받은 내장 구성품을 사용하여 조립한 것으로 완성품에 대한 전자파 적합성 평가는 받지 않은 제품입니다. KC 인증 제품을 부품으로 사용한 경우 완성품에 대하여 별도의 인증이 면제됩니다.

1. 성능사양

System	CPU Core	Intel Core-i3 4010U
	CPU Speed	Intel Core-i3: 1.7GHz (2C/4T)
	Memory	DDR3L SO-DIMM 8GB
	Storage	2.5' SSD 256GB
	OS	WES7 KOR 32/64 , ENG 32/64
	System Utility	* Acronis true image(Recovery System)
Display	Display Type	TFT 15.0'
	Color	16M Colors
	Resolution	1024 x 768, XGA
	Brightness Level	5 Level(Selected BIOS)
	Backlight Type	LED
	Backlight Life	Min. 50,000 hours
Touch	Touch Type	4 wire analog resistive
Touch	Touch Life	1 million times or more
Interface	Serial COM1, COM2	* RS-232C Asynchronous * Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even * Baud rate: 2400~115.2kbps * Connector: DSUB 9pin
	Serial COM3, COM4	* RS-232C/422/485 Asynchronous (Selected BIOS) * Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even * Baud rate: 2400~115.2kbps * Connector : DSUB 9pin & Terminal Block 5P (Pitch 3.5mm)
	Ethernet	* IEEE802.3i/IEEE802.3u/IEEE802.3ab, 10BaseT/100BaseT/1000BaseT * Connector: RJ-45 x 2
	USB	* USB 2.0 Compatible, Output 5Vdc/0.5A Connector: USB Type A x 2 Connector: USB Type Micro B x 1 * USB 3.0 Compatible, Output 5Vdc/0.9A Connector: USB Type A x 2
	Power Button	Electrostatic touch
	VGA	1920 x 1200 at 60 Hz
	HDMI OUT	Max.4096 x 2304 at 24Hz
	Audio	High Definition Audio (HD), Line-in, Line out, Mic-in

2. 일반사양

Environment	Operation Temperature(℃)	0 ~ + 60 °C (RH Non-Condensing)
	Storage Temperature(℃)	-40 ~ 85 °C and 60° C @ 95% RH Non-Condensing
	Operation Humidity(%RH)	40°C @ 95% RH Non-Condensing
	Atmosphere	No corrosive gas
	Vibration Endurance	Amplitude: 10≤F＜25Hz(4G), X,Y,Z each direction(for 30 minutes)
	Noise Immunity	1000Vp-p (Pulse width 1㎲)
	Static Electricity Discharge	Connective discharge from EN61000-4-2: ±4㎸
	Shock Endurance	10G X,Y,Z each direction(for 3 times)
	Surge Voltage	500V(Line-Line)
	Ground Connection	Class 3(100Ω under)
	Protection Classification	Front Side: IP65, Rear Side: IP2X
Power	Input Voltage	AC 100~240V, 50/60Hz or DC 20~28V
	Voltage Sag	Within 10㎳
	Insulation Resistance	500V DC, 10㏁
Structure	External Dimension(㎜)	370 x 301 x 87
	Panel Cut(mm)	355 x 286
	Weight(㎏)	5.0
	Cooling System	Natural air circulation(Fanless)
	Case Material	METAL
