Touch Panel, Touch Display (PLC/HMI)

Model Name

TOPRX1200XD

Series

TOPRX Series

View AllView All Series

Data

Manufacturer information

M2I CORPORATION

HMI Solution Provider, Industrial Touch Screen Manufacturer

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

M2I CORPORATION

Brand

SKU

93030

Product Name

Touch Panel, Touch Display (PLC/HMI)

Model Name

TOPRX1200XD

Size

Weight

Product Details

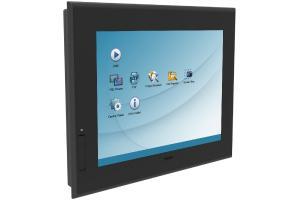

TOPRX1200XD

12.1" TFT Color, 해상도:1024x768

◆ 업계 최초 쿼드코어를 채택한 최상급의 속도

◆ R시리즈와 X시리즈의 장점을 적용한 신제품

- 세련된 일체형 바디

- 서로 다른 네트워크를 지원하는 2포트의 이더넷

- 연결 가능한 제어기(PLC) 인터페이스 최다 보유

- 전면 OTG USB 탑재

- VNC(원격감시제어), FTP(원격데이터교환) 지원

- 오브젝트(도형/태그)의 다층구조(Layer) 지원

- 한 화면에서 여러 화면을 동시 감시(멀티 화면) 지원

1. 성능사양

Display	Display Type	12' TFT Color
	Color	16M Colors
	Display Area(mm)	246x184.5
	Resolution(dot)	1024x768
	Brightness Level	10 Levels(by software)
	Backlight Type	LED
	Backlight Life	50,000 hours
Touch	Touch Type	Analog resistive film
	Resolution(Cell)	1024x768
	Touch Life	1 million times or more
Interface	Serial COM1	* RS-232C, RS-422/485 Asynchronous +5Vdc PWR * Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even * Baud rate: 2400~115.2kbps * Connector: DSUB 9pin x 1
	Serial COM2	* RS-232C, RS-422/485 Asynchronous * Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even * Baud rate: 2400~115.2kbps * Connector: DSUB 9pin x 1
	Serial COM3	* RS-485 Asynchronous * Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even * Baud rate: 2400~115.2kbps * Connector: 3.5mm 3pin x 1
	Ethernet	* IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX * Connector: RJ-45 x 2
	USB Host	* USB 2.0 Compatible, Output 5Vdc/0.5A * Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol) * Connector: USB Type A x 1
	USB OTG	* USB 2.0 Compatible, Output 5Vdc/0.5A, Max 5m * Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol) * Connector: USB Mini-B(Front) x 1
	SD Card	SD Card Slot x 1, SDHC(MAX 32GB)
	Option Modules	EtherCAT, CANopen
	Printer	Almost USB interface Printers, Roll Printer(EPSON protocol): RS-232C
Memory &Others	Screen Memory	128MB
	Backup Memory	512KB: System buffer(10K Word), Including Alarm/Logging/Recipe
	Backup Period	Permanent
	Real Time Clock	Built in
	Status LED	3 LEDs(Power, Operation, Link) Built in

2. 일반사양


	Operation Temperature(°C)	-10 ~ +50
Power	Input Voltage	24Vdc(20~28Vdc)
	Power Consumption	20W or less
	Voltage Sag	24Vdc, Within 10ms
	Insulation Resistance	500Vdc, 10MΩ
Environment	Operation Temperature(°C)	-10 ~ +50
	Storage Temperature(°C)	-20 ~ +60
	Operation Humidity(%RH)	0 ~ 90(No dew)
	Atmosphere	No corrosive gas
	Vibration Endurance	Amplitude: 10≤F＜25㎐(2G) X,Y,Z each direction(for 30 minutes)
	Noise Immunity	1000Vp-p(Pulse width 1㎲)
	Static Electricity Discharge	Connective discharge from EN61000-4-2: ±4㎸
	Shock Endurance	10G X,Y,Z each direction(for 3 times)
	Ground Connection	Class 3(100Ω under)
	Protection Classification	* General model: IP65(Front) * Explosion proof model: IP4X(Front)
	Certification	* General model: CE, KC, UL * Explosion proof model: CE, KC, UL, KCs, NEPSI, ATEX
Structure	Panel Cut(mm)	306x247
	External Dimension(mm)	320x261x64.7
	Weight(kg)	2.18
	Cooling System	Natural air circulation
	Case Material	PC(Resistance to flame)
