Touch Panel, Touch Display (PLC/HMI)
Model Name
TOPRE0700WD (NE)
Series
TOPRW Series
Data
-
Manufacturer information
provider logo
M2I CORPORATION

HMI Solution Provider, Industrial Touch Screen Manufacturer

Problem with product info?
Update request
Manufacturer
M2I CORPORATION
Brand
-
SKU
93031
Product Name
Touch Panel, Touch Display (PLC/HMI)
Model Name
TOPRE0700WD (NE)
Size
-
Weight
-
Product Details

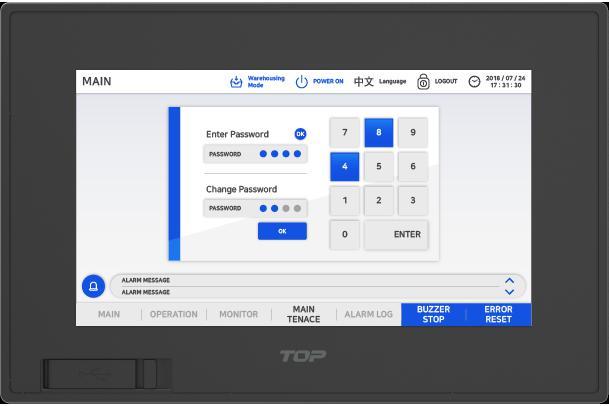

TOPRE0700WD (NE)

7" TFT Color, 800x480



1. 성능사양

Display

Display Type 7' TFT Color
Color 16M Colors
Display Area(mm) 154x86
Resolution(dot) 800x480
Brightness Level 10 Levels(by software)
Backlight Type LED
Backlight Life  50,000 hours

Touch

Touch Type Analog resistive film
Resolution(Cell) 800x480
Touch Life 1 million times or more
Interface Serial COM1
(RS-232C Only)
 RS-232C, RS-422/485 Asynchronous
Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even
Baud rate: 2400~115.2kbps
Connector: DSUB 9pin x 1
Serial COM2
(RS-422/485 Only)
Ethernet IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX
Connector: RJ-45 x 1
NE(No Ethernet) model: cannot support Ethernet interface
USB Host USB 2.0 Compatible, Output 5Vdc/0.5A
Support: USB Storage, USB Barcode Scanner (Standard Keyboard Protocol)
Connector: USB Type A x 1
USB OTG USB 2.0 Compatible, Output 5Vdc/0.5A, Max 5m
Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol)

Connector: USB Mini-B(Front) x 1
SD Card SD Card Slot x 1, SDHC(MAX 32GB)
Printer  Almost USB interface Printers, Roll Printer(EPSON protocol): RS-232C
Memory
&Others
Screen Memory 64 MB
Backup Memory  512KB: System buffer(10K Word), Including Alarm/Logging/Recipe
Backup Period

Permanent

Real Time Clock Built in
Status LED 3 LEDs(Power, Operation, Link) Built in



2. 일반사양

Power

Input Voltage 24Vdc(20~28Vdc)
Power Consumption 15W or less
Voltage Sag 24Vdc, Within 10㎳
Insulation Resistance  500Vdc, 10㏁

Environment

Operation Temperature(°C) -10 ~ +50
Storage Temperature(°C) -20 ~ +60
Operation Humidity(%RH) 0 ~ 90(No dew)
Atmosphere No corrosive gas
Vibration Endurance Amplitude: 10≤F<25㎐(2G) X,Y,Z each direction(for 30 minutes)
Noise Immunity

1000Vp-p(Pulse width 1㎲)

Static Electricity Discharge  Connective discharge from EN61000-4-2: ±4㎸
Shock Endurance 10G, X, Y, Z direction for 3 times
Ground Connection  Class 3(100Ω or less)
Protection Classification IP65(Front)
Certification CE, KC, UL
Structure Panel Cut(mm) 197x127
External Dimension(mm) 206.5x136.5x44
Weight(kg) 0.72
Cooling System Natural air circulation
Case Material PC(Resistance to flame
