93035
Product Name
Touch Panel, Touch Display (PLC/HMI)
Model Name
TOPRW0500WD
Size
-
Weight
-
Product Details

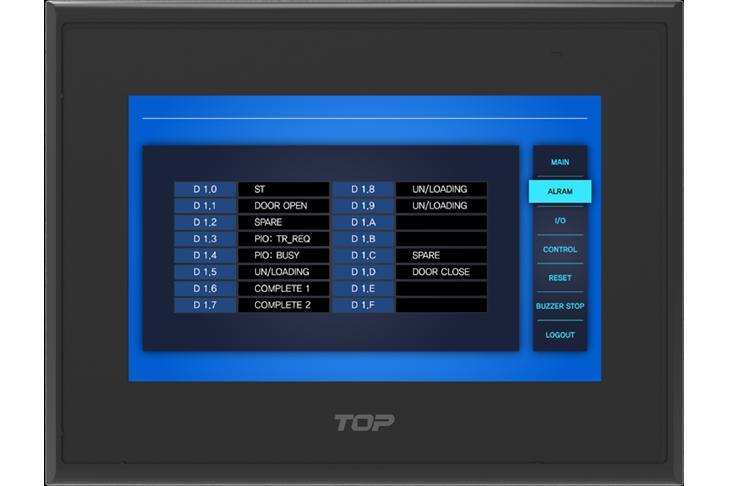

TOPRW0500WD
5" TFT Color, 800x480

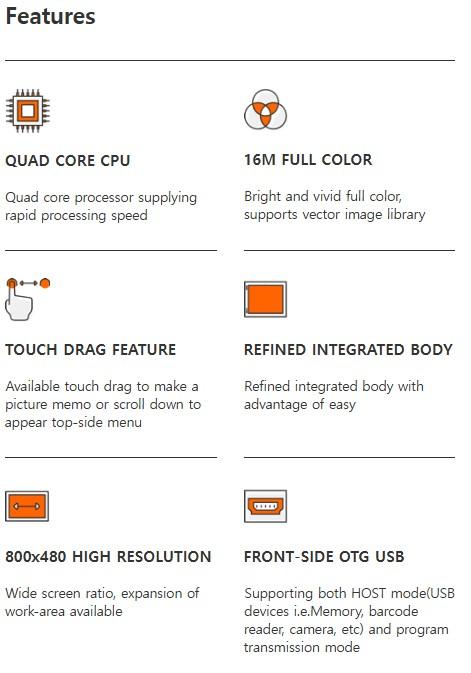

베스트셀러 XTOP WIDE 시리즈의 명성에 이어 최상급의 성능과 합리적인 가격을 갖춘 새로운 RW 시리즈
- 쿼드 코어를 채택한 최상급의 속도 지원
- 화려한 1,677만 컬러 지원
- 10.2", 7", 5" 사이즈 모두 800x480 고해상도 지원
- 세련된 일체형 디자인
- 원격 감시 제어 VNC 기능 지원(Mobile/Tablet/Laptop)
- 원격 데이터 교환 FTP 기능 지원
- 오브젝트의 다층구조(Layer) 지원

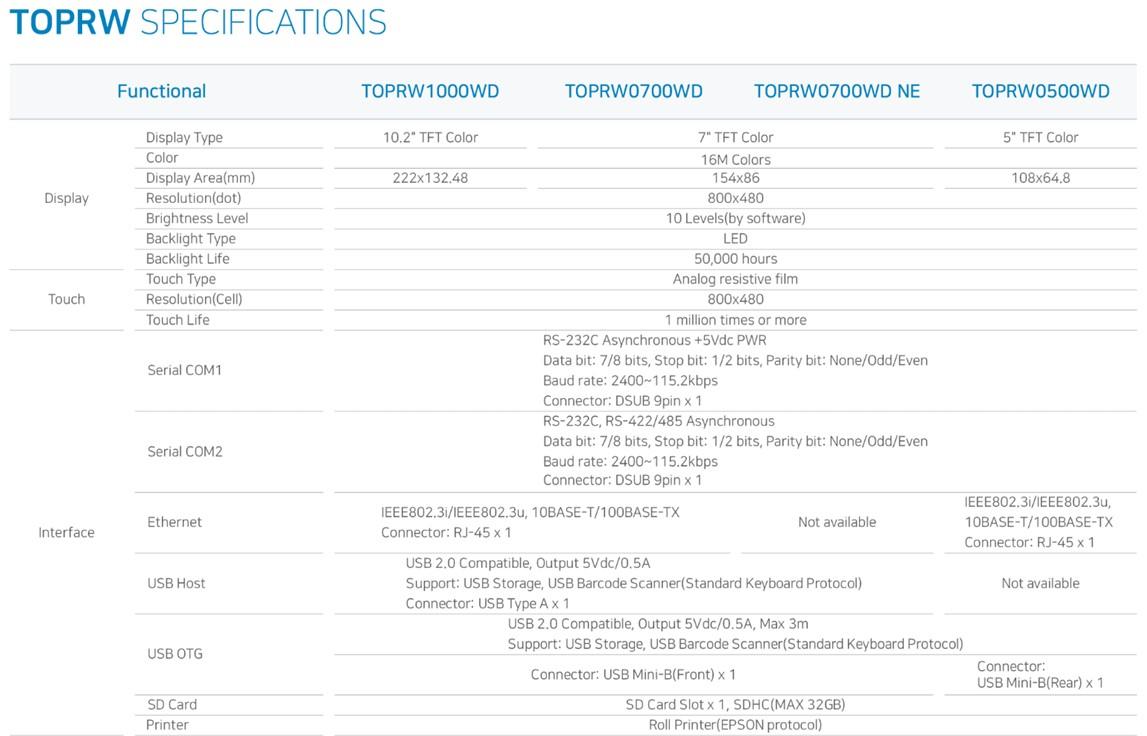

1. 성능사양
|
Display |
Display Type | 5' TFT Color |
|---|---|---|
| Color | 16M Colors | |
| Display Area(mm) | 108x64.8 | |
| Resolution(dot) | 800x480 | |
| Brightness Level | 10 Levels(by software) | |
| Backlight Type | LED | |
| Backlight Life | 50,000 hours | |
|
Touch |
Touch Type | Analog resistive film |
| Resolution(Cell) | 800x480 | |
| Touch Life | 1 million times or more | |
| Interface | Serial COM1 |
* RS-232C Asynchronous +5Vdc PWR
* Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even
* Baud rate: 2400~115.2kbps
* Connector: DSUB 9pin x 1
|
| Serial COM2 | * RS-232C, RS-422/485 Asynchronous * Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even * Baud rate: 2400~115.2kbps * Connector: DSUB 9pin x 1 |
|
| Ethernet | * IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX * Connector: RJ-45 x 1 |
|
| USB Host | Not available | |
| USB OTG |
* USB 2.0 Compatible, Output 5Vdc/0.5A, Max 5m
* Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol)
* Connector: USB Mini-B(Rear) x 1
|
|
| SD Card | SD Card Slot x 1, SDHC(MAX 32GB) | |
| Printer | Almost USB interface Printers, Roll Printer(EPSON protocol): RS-232C | |
|
Memory
&Others
|
Screen Memory | 128MB |
| Backup Memory | 512KB: System buffer(10K Word), Including Alarm/Logging/Recipe | |
| Backup Period |
Permanent |
|
| Real Time Clock | Built in | |
| Status LED | 3 LEDs(Power, Operation, Link) Built in |
2. 일반사양
|
Power |
Input Voltage | 24Vdc(20~28Vdc) |
|---|---|---|
| Power Consumption | 15W or less | |
| Voltage Sag | 24Vdc, Within 10㎳ | |
| Insulation Resistance | 500Vdc, 10MΩ | |
|
Environment |
Operation Temperature(°C) | -10 ~ +50 |
| Storage Temperature(°C) | -20 ~ +60 | |
| Operation Humidity(%RH) | 0 ~ 90(No dew) | |
| Atmosphere | No corrosive gas | |
| Vibration Endurance | Amplitude: 10≤F＜25㎐(2G) X,Y,Z each direction(for 30 minutes) | |
| Noise Immunity |
|
|
| Static Electricity Discharge | Connective discharge from EN61000-4-2: ±4㎸ | |
| Shock Endurance | 10G X,Y,Z each direction(for 3 times) | |
| Ground Connection | Class 3(100Ω under) | |
| Protection Classification | IP65(Front) | |
| Certification | CE, KC, UL | |
| Structure | Panel Cut(mm) | 136x100 |
| External Dimension(mm) | 150x114x41.8 | |
| Weight(kg) | 0.4 | |
| Cooling System | Natural air circulation | |
| Case Material | PC(Resistance to flame) |
