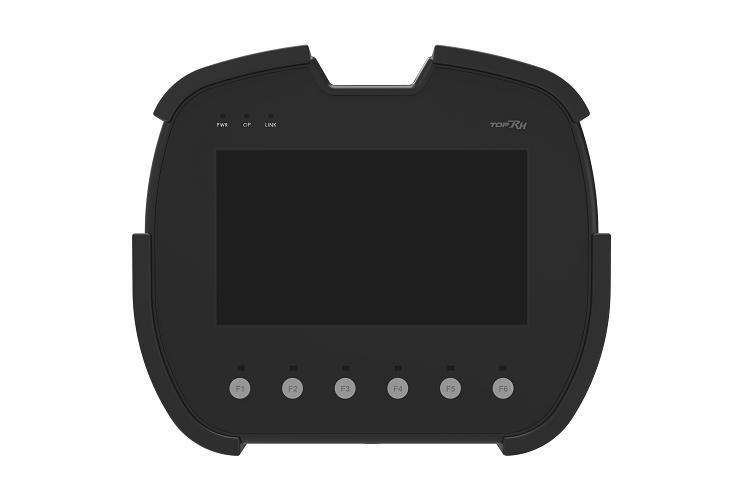

product Image
무선 Handy
Model Name
TOPRH0700WD-W
Series
TOPRH Series
Data
-
Manufacturer information
provider logo
M2I CORPORATION

HMI Solution Provider, Industrial Touch Screen Manufacturer

Problem with product info?
Update request
Manufacturer
M2I CORPORATION
Brand
-
SKU
93038
Product Name
무선 Handy
Model Name
TOPRH0700WD-W
Size
-
Weight
-
Product Details

TOPRH0700WD-W

세계 최초 무선 Handy 시리즈의 업그레이드 신제품

7"1024x600 LCD, 16M 컬러 채택으로 넓고 선명한 화면



- 고성능의 무선칩 탑재

- 쿼드 코어를 채택한 최상급의 속도 지원

- 세련되고 인체공학적으로 설계된 그립

- KeyLock, 기능키, 터치펜 내장

- 충전 및 거치 크래들 제공(배터리 별도 충전 가능)

- 충격 방지 범퍼 장착

- 생활 방수 기능



- 원격 감시 제어 VNC 기능 지원(Mobile/Tablet/Laptop)

- 원격 데이터 교환 FTP 기능 지원

- 오브젝트의 다층구조(Layer) 지원



1. 성능사양

Display

Display Type 7' TFT Color
Color 16M Colors
Display Area(mm) 154.21x85.92
Resolution(dot) 1024x600
Brightness Level 3 Levels(by software)
Backlight Type LED
Backlight Life  50,000 hours

Touch

Touch Type Analog resistive film
Resolution(Cell) 1024x600
Touch Life 1 million times or more
Interface Wireless LAN
* 2.4G: 2.4000GHz~2.4835GHz
* 5G: 5.150GHz~5.725GHz
* WLAN Standard: IEEE802.11 a/b/g/n
* Operation Range Up to 150meters in open space
* Security: WEP,TKIP,AES,WPA,WPA2
USB Host * USB 2.0 Compatible, Output 5Vdc/0.5A
* Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol)
* Connector: USB Type A x 2
USB OTG * USB 2.0 Compatible, Output 5Vdc/0.5A, Max 5m
* Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol)
* Connector: USB Mini-B x 1
SD Card SD Card Slot x 1, SDHC(MAX 32GB)
Function Key 6Position with LED
Printer Almost USB interface Printers
Machenical Switchs Keylock Switch 1A, 3Position enable Switch OFF-ON-OFF(1CH)
Power Switch Push-Push power on-off switch built in
Memory
&Others
Screen Memory 128MB
Backup Memory 512KB: System buffer(10K Word), Including Alarm/Logging/Recipe
Backup Period

Permanent

Real Time Clock Built in
Status LED 3 LEDs(Power, Operation, Link) Built in



2. 일반사양

Power

Consumption 20W or less(In Battery Pack)

Environment

Operation Temperature(°C) +10 ~ +45
Storage Temperature(°C) -20 ~ +60
Operation Humidity(%RH) 0 ~ 90(No dew)
Atmosphere No corrosive gas
Vibration Endurance Amplitude: 10≤F<25㎐(2G) X,Y,Z each direction(for 30 minutes)
Static Electricity Discharge Connective discharge from EN61000-4-2: ±4㎸
Shock Endurance  10G X,Y,Z each direction(for 3 times)
Protection Classification IP65
Certification CE, KC, UL
Structure External Dimension(mm) 237x205x103
Weight(kg) 1.32(Including Battery Pack)
Cooling System Natural air circulation
Case Material PC(Resistance to flame)
