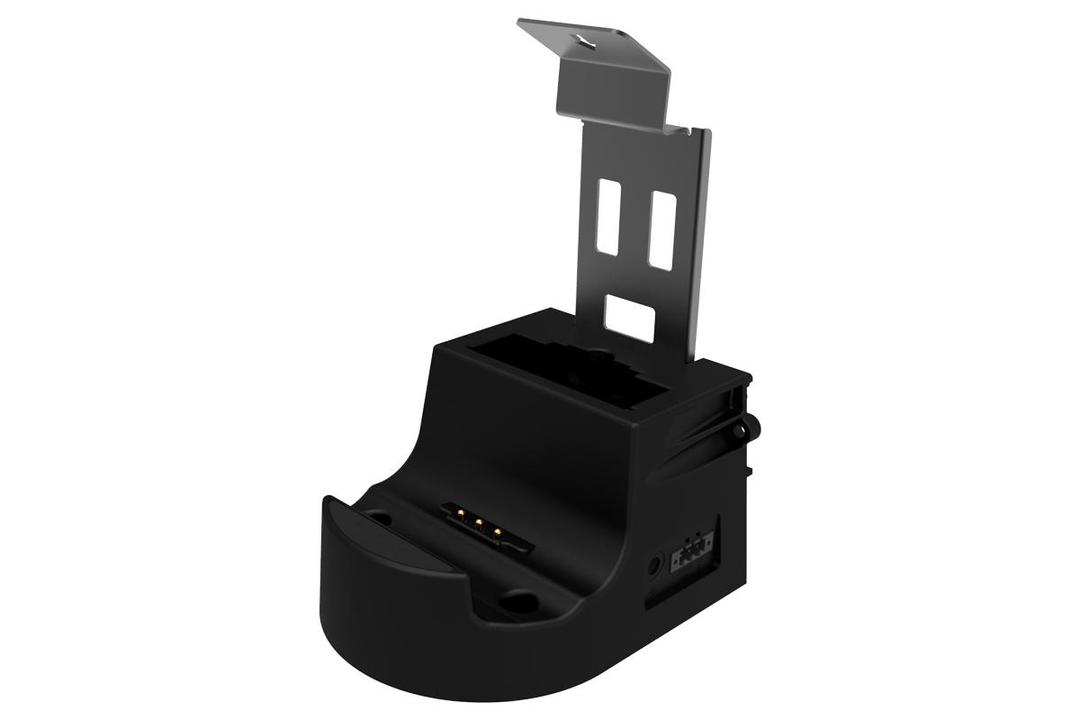

product Image
거치 크래들
Model Name
TOPRH-CRDL
Series
TOPRH Series
Data
-
Manufacturer information
provider logo
M2I CORPORATION

HMI Solution Provider, Industrial Touch Screen Manufacturer

Problem with product info?
Update request
Manufacturer
M2I CORPORATION
Brand
-
SKU
93039
Product Name
거치 크래들
Model Name
TOPRH-CRDL
Size
-
Weight
-
Product Details

TOPRH-CRDL

본체 충전 및 거치 크래들



1. 성능사양

Power

Input Voltage 24Vdc(18~26Vdc)
Output Voltage 8.4Vdc 5.7A
Power Consumption 80W or less(with Main Body + Extra Battery Pack)
Voltage Sag 24Vdc, Within 10㎳
Insulation Resistance 500Vdc, 10㏁
Status LED 3 LEDs(Main Battery Pack, Power, Sub Battery Pack) Built in

Environment

Operation Temperature(℃) -10 ~ +50
Storage Temperature(℃) -20 ~ +60
Operation Humidity(%RH) 0 ~ 90(No dew)
Atmosphere No corrosive gas
Vibration Endurance Amplitude: 10≤F<25㎐(2G) X,Y,Z each direction(for 30 minutes)
Noise Immunity 1000Vp-p(Pulse width 1㎲)
Static Electricity Discharge Connective discharge from EN61000-4-2: ±4㎸
Shock Endurance 10G X,Y,Z each direction(for 3 times)
Ground Connection Class 3(100Ω under)
Certification CE, KC
Structure External Dimension(㎜) 214.5x125x154
Weight(kg) 0.6
Cooling System Natural air circulation
Case Material PC(Resistance to flame)



2. 일반사양

Power

Input Voltage 24Vdc(18~26Vdc)
Output Voltage 8.4Vdc 5.7A
Power Consumption 80W or less(with Main Body + Extra Battery Pack)
Voltage Sag 24Vdc, Within 10㎳
Insulation Resistance 500Vdc, 10㏁
Status LED 3 LEDs(Main Battery Pack, Power, Sub Battery Pack) Built in

Environment

Operation Temperature(℃) -10 ~ +50
Storage Temperature(℃) -20 ~ +60
Operation Humidity(%RH) 0 ~ 90(No dew)
Atmosphere No corrosive gas
Vibration Endurance Amplitude: 10≤F<25㎐(2G) X,Y,Z each direction(for 30 minutes)
Noise Immunity 1000Vp-p(Pulse width 1㎲)
Static Electricity Discharge Connective discharge from EN61000-4-2: ±4㎸
Shock Endurance 10G X,Y,Z each direction(for 3 times)
Ground Connection Class 3(100Ω under)
Certification CE, KC
Structure External Dimension(㎜) 214.5x125x154
Weight(kg) 0.6
Cooling System Natural air circulation
Case Material PC(Resistance to flame)
M2I CORPORATION
HMI Solution Provider, Industrial Touch Screen Manufacturer
Established in 1999, M2I Corporation manufactures and exports HMI SYSTEM for industrial automation application and other automation application such as information service system and building automation system. Since its establishment, we have continued to invest in research and development in order to improve the quality of touch panel and panel PC. We have replaced a large portion of foreign imports in domestic market with prompt customer service, price and quality comparable to those of imported items. Enhancing our image as a expert of industrial monitoring system all over the world by providing various kind of HMI SYSTEM and guarantee the highest quality products at a competitive price. So our export market is expanding more and more because of highly favorable reputation of our technical competence and prompt technical support as required by our customers.
