Product Name
Touch Panel, Touch Display (PLC/HMI)
Model Name
TOPRD0820S + TOPRP20D
Size
-
Weight
-
Product Details

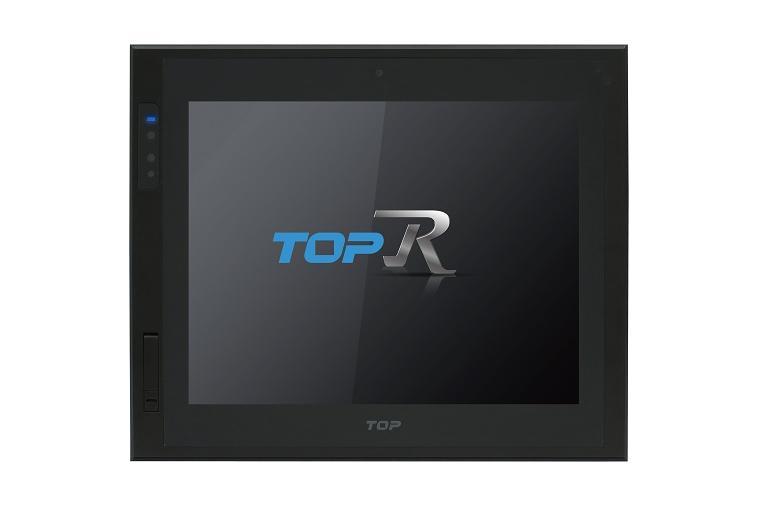

TOPRD0820S + TOPRP20D
8.4", 프리미엄 모델, 해상도:800x600
◆ 쿼드코어 CPU
◆ 고급스러운 알루미늄 바디
◆ 화면과 본체의 분리
◆ 3접점 동시인식 멀티 터치, 제스처 조작
◆ 밝고 선명한 풀칼라 LCD
◆ 확장된 인터페이스
- 시리얼 3포트, 이더넷 2포트, USB
- 카메라, WiFi, Fieldbus, HDMI, Audio, Video
1. 성능사양
TOPRD0820S
|
Display |
Display Type |
8.4' TFT Color |
|---|---|---|
| Color | 16M Colors | |
| Display Area(mm) | 170.9x128.2 | |
| Resolution(dot) | 800x600 | |
| Brightness Level | 10 Levels(by software) |
|
| Backlight Type |
LED | |
| Backlight Life |
50,000 hours |
|
|
Touch |
Touch Type | Analog resistive film(Multi Touch) |
| Resolution(Cell) | 800x600 | |
| Touch Life | 1 million times or more | |
| Embedded Device | Front Camera | USB UVC Max. resolution: 640x480 |
| Proximity Sensor | Yes | |
| Illumination Sensor | Yes | |
| Structure | Panel Cut(㎜) | 222x168 |
| External Dimension(㎜) |
237x183x32.7 |
|
| Weight(㎏) |
1.32 |
- TOPRP20D
| Interface | Serial COM1 | RS-232C, RS-422/485 Asynchronous +5Vdc PWR Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400~115.2kbps Connector: DSUB 9pin x 1 |
||
|---|---|---|---|---|
| Serial COM2 | RS-232C, RS-422/485 Asynchronous Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400~115.2kbps Connector: DSUB 9pin x 1 |
|||
| Serial COM3 | RS-485 Asynchronous Data bit: 7/8 bits, Stop bit: 1/2 bits, Parity bit: None/Odd/Even Baud rate: 2400~115.2kbps Connector: 3.5mm 3pin x 1 |
|||
| Ethernet | IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: RJ-45 x 2 |
|||
| USB Host | USB 2.0 Compatible, Output 5Vdc/0.5A Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol) Connector: USB Type A x 2 |
|||
| USB OTG | USB 2.0 Compatible, Output 5Vdc/0.5A, Max 5m Support: USB Storage, USB Barcode Scanner(Standard Keyboard Protocol) Connector: USB Micro-B(Front) x 1 |
|||
| SD Card | SD Card Slot x 1, SDHC(MAX 32GB) | |||
| Option Modules | EtherCAT, CANopen, CAM32 | |||
| HDMI Output | HDMI output, Max. Resolution: 1920x1080 Connector: HDMI x 1 |
|||
| Video Input | Decodes NTSC, PAL or SECAM composite video, S-Video Connector: RCA socket x 1 |
|||
| Audio Output | Stereo output Connector: 3.5mm Audio socket x 1 |
|||
| Wifi | 2.4G: 2.4000GHz～2.4835GHzWLAN Standard: IEEE808.11b/g/n Operation Range Up to 150meters i n open spaceSecurity: WEP, TKIP, AES, WPA, WPA2 |
|||
| Printer | Almost USB interface Printers, Roll Printer(EPSON protocol): RS-232C | |||
|
Memory
&Others
|
Screen Memory | 128MB | ||
| Backup Memory | 512KB: System buffer(10K Word), Including Alarm/Logging/Recipe | |||
| Backup Period | Permanent | |||
| Real Time Clock | Built in | |||
| Status LED | 3 LEDs(Power, Operation, Link) Built in |
|||
| Structure | External Dimension(㎜) | 201.6x147.6x37.3 |
||
| Weight(kg) | 0.82 | |||
2. 일반사양
Display + Process Specifications
| Power | Input Voltage | 24Vdc(20~28Vdc) |
|---|---|---|
| Power Consumption | 10W or less | |
| Voltage Sag | 24Vdc, Within 10㎳ | |
| Insulation Resistance | 500Vdc, 10㏁ | |
| Environment | Operation Temperature(℃) | -10 ~ +50 |
| Storage Temperature(℃) | -20 ~ +60 | |
| Operation Humidity(%RH) | 0 ~ 90(No Dew) | |
| Atmosphere | No corrosive gas | |
| Vibration Endurance | Amplitude: 10≤F＜25㎐(2G) X,Y,Z each direction(for 30 minutes) | |
| Noise Immunity | 1000Vp-p(Pulse width 1㎲) | |
| Static Electricity Discharge | Connective discharge from EN61000-4-2: ±4㎸ | |
| Shock Endurance | 10G X,Y,Z each direction(for 3 times) | |
| Ground Connection | Class 3(100Ω or less) | |
| Protection Classification | IP65(Front) | |
| Certification | CE, KC, UL | |
| Structure | Weight (kg) | 2.14 |
| Cooling System | Natural air circulation | |
| Case material | AL(Aluminum) |
