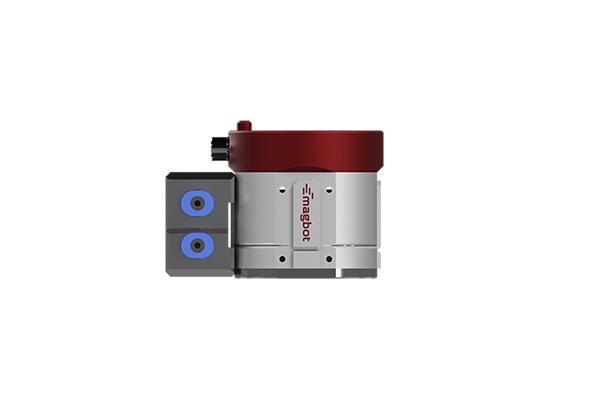

product Image

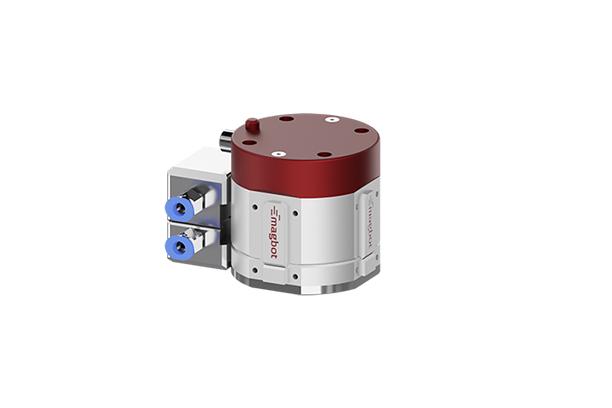

product Image
Cobot Tool Changer
Model Name
TCV1
Series
Cobot Tool Changer
Data
Catalog-Magbot-Cobot Tool Changer
Manufacturer information
provider logo
UND

Robot Automatic Tool Changer Manufacturer, Cobot Tool Changer, Magnetic Gripper, Cobot Tool Stand

Problem with product info?
Update request
Manufacturer
UND
Brand
-
SKU
133783
Product Name
Cobot Tool Changer
Model Name
TCV1
Size
-
Weight
-
Product Details
Spec TCV1
Payload (Weight capability) 10kg [98N·m, 22.05lbs]
Positioning Repeatability ±0.05mm
Size
(Dimension)
Master TC
(Robot-side TC)
Ø63 × 53mm[[2.48 in × 2.087 in]]
Tool Plate
(Tool-side TC)
Ø61 × 13.2mm[2.40 in × 0.52 in]
Tool Changer
(When coupled)
Ø63 x 59mm[2.48 in x 2.32 in]
Weight
(Main product)
Master TC
(Robot-side TC)
524g [1.16 lbs]
Tool Plate
(Tool-side TC)
136g [0.30 lbs]
Tool Changer
(When coupled)
660g [1.46 lbs]
Technology Switch Magnetic Tech
Temperature and Humidity -20˚C~80˚C [-4˚F~176˚F]
0~85%(no condensation)
IP Code (Ingress Protection) IP56
Electric Spec 24V / 2A
accessory Pogo Pin Module 1A X 8EA (Electric Module)
Pneumatic Module 6 Bar (M6 X 2EA)
Weight Capability (Holding Force) Under 10kg[22.05lbs]
Thickness of loading materials over 0.5T
Loading materials Ferromagnet
Grip / Release Duration 0.2 Sec
Electric Spec 24V, 2A
Robot Automatic Tool Changer Manufacturer, Cobot Tool Changer, Magnetic Gripper, Cobot Tool Stand
Magbot, Leading Robot Industry as Core of 4th Industrial RevolutionThe new standard of Robot Automatic Tool ChangerThe World 1st completely wireless automatic tool changer, Magbot Magbot, robot automatic tool changer, is the world's first fully wireless changing system. A single robot requires various robot end-effectors (tools) to provide multi-processing and services; thus, an automated robotic tool changer is essential to change the tools automatically. Magbot, an automated robotic tool changer, offers an ultra-simple changing system based on ultra-fast, ultra-powerful switching magnetic technology.It is recognized with the top quality with strong durability (drop, bump, vibration) and high reliability (high & low temperature, high humidity, waterproof, dustproof). Along with the world's first fully wireless robot tool changer of TCW1, the wired tool changer of TCV1 with a payload of 10Kg and TCV2 with a payload of 16Kg are ultra-simple operating system by using the power system (24V 2A) of the collaborative robot without the external power system. The price competitive Magbot tool plate (Tool-side Tool Changer) for the expansion of various tools for automated and unmanned robot system ensures strong scalability. Magbot provides innovative value to customers by expanding the application to the magnetic gripper for the pick and place process, in addition to the robot automatic tool changing function.
