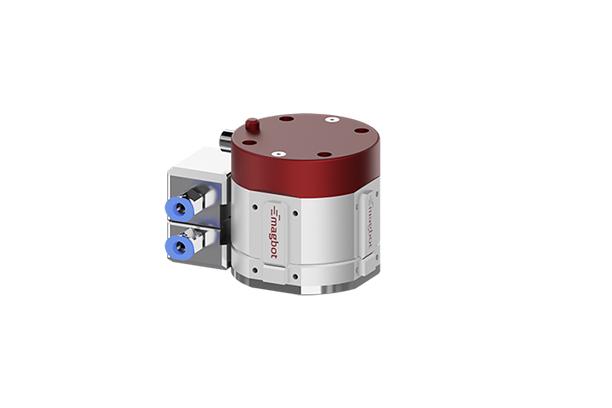

Spec | TCV2 | ||
---|---|---|---|
Payload (Weight capability) | 16kg [157N·m, 35.27lbs] | ||
Positioning Repeatability | ±0.05mm | ||
Size (Dimension) |
Master TC (Robot-side TC) |
Ø80 × 62.5mm[3.15 in × 2.46 in] | |
Tool Plate (Tool-side TC) |
Ø78 × 15.2mm[3.07 in × 0.60 in] | ||
Tool Changer (When coupled) |
Ø105 x 70.5mm[4.13 in x 2.78 in] | ||
Weight (Main product) |
Master TC (Robot-side TC) |
1,146g [2.53 lbs] | |
Tool Plate (Tool-side TC) |
304g [0.67 lbs] | ||
Tool Changer (When coupled) |
1450g [3.20 lbs] | ||
Technology | Switch Magnetic Tech | ||
Temperature and Humidity | -20˚C~80˚C [-4˚F~176˚F] | ||
0~85%(no condensation) | |||
IP Code (Ingress Protection) | IP56 | ||
Electric Spec | 24V / 2A | ||
accessory | Pogo Pin Module | 1A X 8EA (Electric Module) | |
Pneumatic Module | 6 Bar (M6 X 2EA) | ||
Weight Capability (Holding Force) | Under 16kg[35.27lbs] | ||
Thickness of loading materials | over 0.5T | ||
Loading materials | Ferromagnet | ||
Grip / Release Duration | 0.2 Sec | ||
Electric Spec | 24V, 2A |
