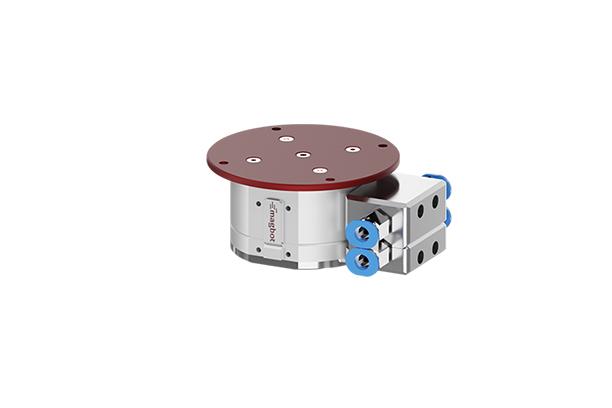

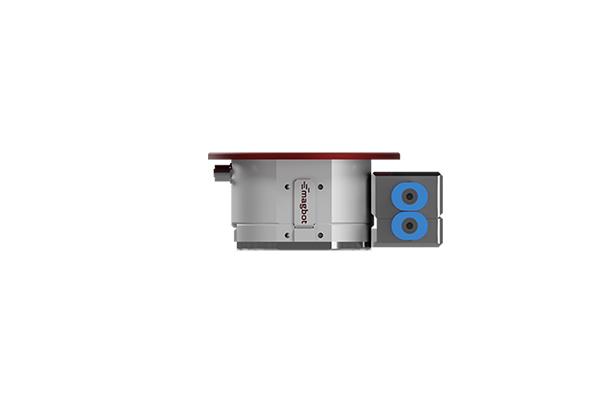

Spec | TCC1 | ||
---|---|---|---|
Payload (Weight capability) | 5kg [49N·m, 11.02Ibs] | ||
Positioning Repeatability | ±0.05mm | ||
Size (Dimension) |
Master TC (Robot-side TC) |
Ø53 X 31.5mm[2.09in x 1.24in] | |
Tool Plate (Tool-side TC) |
Ø53 X 9.5mm[2.09in x 0.37in] | ||
Tool Changer (When coupled) |
Ø53 X 35.5mm[2.09in x 1.4in] | ||
Weight (Main product) |
Master TC (Robot-side TC) |
341g [0.75lbs] | |
Tool Plate (Tool-side TC) |
67g [0.15lbs] | ||
Tool Changer (When coupled) |
408g [0.9lbs] | ||
Technology | Switch Magnetic Tech | ||
Temperature and Humidity | -20˚C~80˚C [-4˚F~176˚F] | ||
0~95%(no condensation) | |||
IP Code (Ingress Protection) | IP57 | ||
Electric Spec | 24V / 2A | ||
accessory | Pogo Pin Module | 1A X 8EA (Electric Module) | |
Pneumatic Module | 3 Bar (M3 X 2EA) | ||
Weight Capability (Holding Force) | Under 4kg[8.82lbs] | ||
Thickness of loading materials | over 0.5T | ||
Loading materials | Ferromagnet | ||
Grip / Release Duration | 0.1 Sec | ||
Electric Spec | 24V, 2A |
