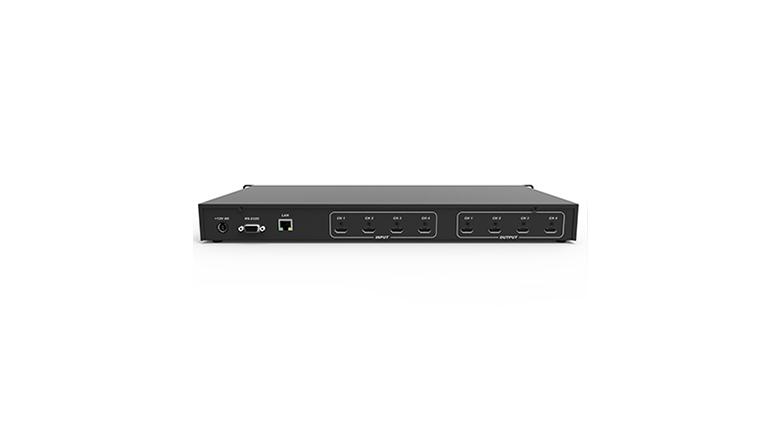

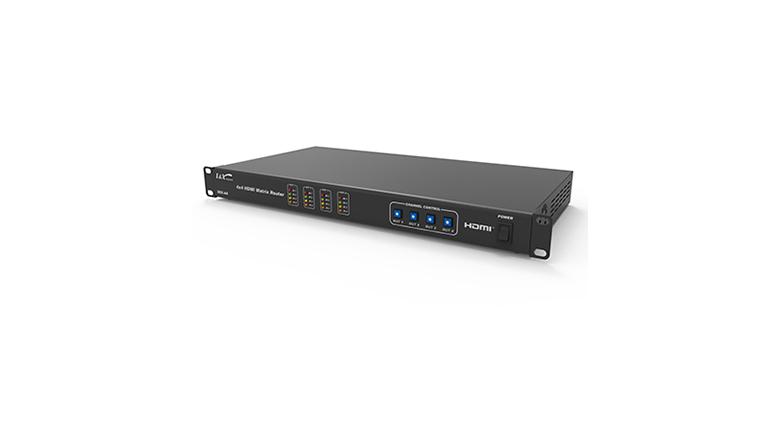

HDMI Matrix Router
Model Name
IHX-44
Series
Modular Matrix Router & Matrix Router
Data
HDMI Matrix Router
Manufacturer information
provider logo
Master

Video signal testing equipment manufacturer, Generator, Multi media player and more

Problem with product info?
Update request
Manufacturer
Master
Brand
-
SKU
45517
Product Name
HDMI Matrix Router
Model Name
IHX-44
Size
-
Weight
-
Product Details

IHX-44 HDMI matrix distributes(switching) high-definition digital image from input equipment to output display equipment.
It is user-configurable matrix switching and routing of HDMI inputs and outputs.


-. Easy and convenient operator system.
-. Remote control via RS-232C, Ethernet (TCP/IP)
-. Supports Various resolution
-. Supports HDMI 1.3, HDMI 1.2
-. Integrated video and audio signal
-. 19" Stendard RACK TYPE CASE (1U)
-. Data Rate : 1.65Gbps
-. KC Certification : MSIP-REM-BLX-IHX-44


RESOLUTION

 VGA(640X480) ~ WUXGA(1920X1200), HDTV(480i~1080i/p)

 SIGNAL BANDWIDTH

 2.25Gbps

 INPUT CONNECTOR

 HDMI 19Pin Female x 4Ch

 OUTPUT CONNECTOR

 HDMI 19Pin Female x 4Ch

 POWER

 AC 110-240V/1.5A, 50/60Hz, DC12V/5A

 DIMENSION(mm)

 482 x 230 x 44

 WEIGHT(Kg)

 3Kg

 ENVIRONMENT

 -10°C~60°C / Humidity 80%

 CERTIFICATION

 MSIP-REM-BLX-IHX-44
