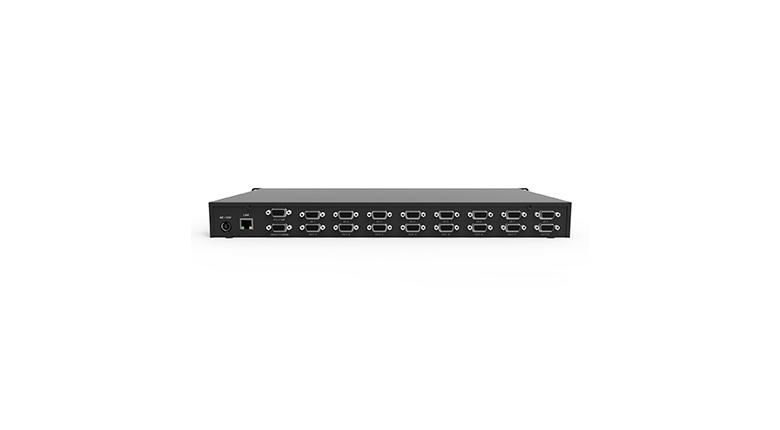

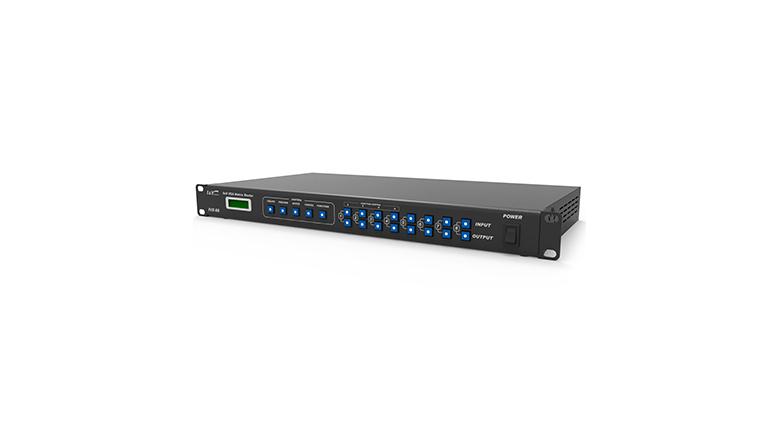

IVX-88 VGA matrix distributes(switching) high-definition analog image from input equipment to output display equipment.
-. Easy and convenient operator system
-. Remote control via RS-232C, Ethernet(TCP/IP)
-. 19" Standard RACK TYPE CASE (1U)
-. Signal Badwidth : 350MHz (-3dB)
-. EDID read function
-. KC certification : MSIP-REM-BLX-IVX-88
RESOLUTION | VGA(640X480) ~ WUXGA(1920X1200) |
SIGNAL BANDWIDTH | 350MHz(-3dB) |
INPUT / OUPUT | VGA-WUXGA, RGBHV, RGsB, RsGsBS, HDTV, COMPONENT, S-VIDEO, COMPOSITE *Following Input Signal |
POWER | AC 110-240V/1.5A, 50/60Hz, DC12V/5A |
DIMENSION(mm) | 482 x 230 x 44 |
WEIGHT(Kg) | 3.5 |
ENVIRONMENT | -10°C~60°C / Humidity 80% |
