HDMI Distribution
Model Name
IHX-14UD60
Series
Switchers & Distributor
Data
HDMI Distribution Amplfier
Manufacturer information
provider logo
Master

Video signal testing equipment manufacturer, Generator, Multi media player and more

Problem with product info?
Update request
Manufacturer
Master
Brand
-
SKU
45530
Product Name
HDMI Distribution
Model Name
IHX-14UD60
Size
-
Weight
-
Product Details

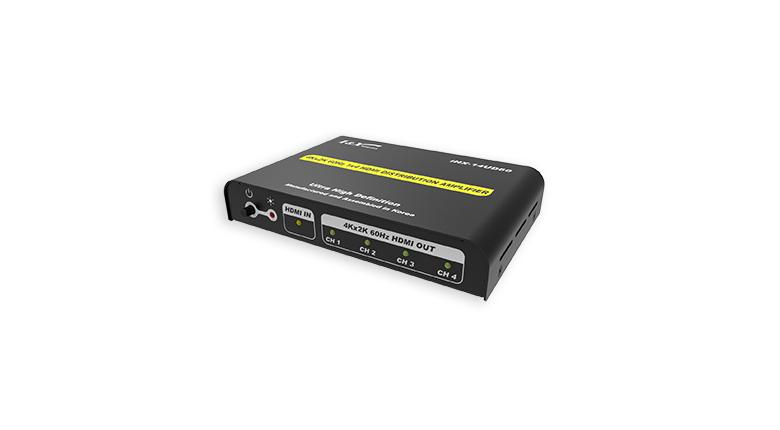

IHX-14UD60 is a one input, four output distribution amplifier for HDMI signals.
It supports resolutions up to 3840x2160 60Hz(600Mhz) RGB 444/YCbCR444,420,420 with mixed EDID, HDCP 2.2 and 3D.

-. UHD(4Kx2K 60Hz(600Mhz)) Input&Output Supports
-. HDCP 2.2 Supports
-. MIXED EDID Supports
-. RGB 444 / YCbCr 444,422,420 Supports
-. 3D Supports


Date Rate

Max 6 Gbps

 IN/OUT Channel

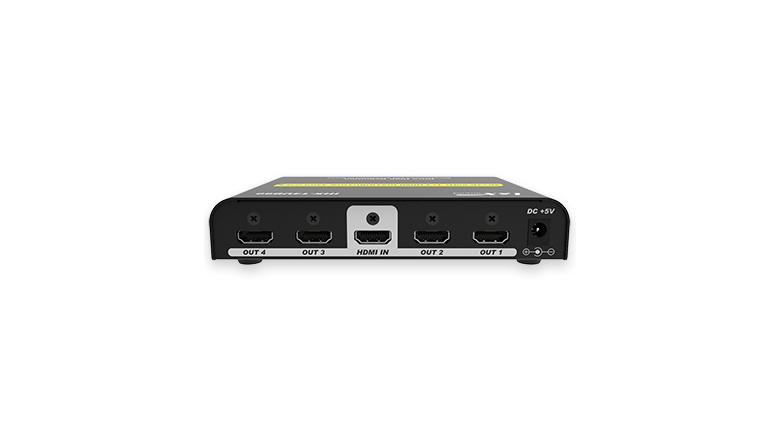

 HDMI Input 1  / HDMI output 4 Channels

 HDMI CONNECTOR

 HDMI Type A Connector

 HDMI COMPLIANCE

 HDMI 2.0 Specifications

 SIGNAL

 TMDS

 POWER

 DC 5V / 3A (Adaptor : AC 100~240V, 50/60Hz)

 DIMENSION

 151 x 101 x 27 (mm)

 ENVIRONMENT

 0 ~ 40℃  / 80% Humidity
