Pure / Ultra pure water manufacturing device, Scientific equipment, Physical and chemical equipment
Dimensions
1,320(W) x 750(D) x 1,900(H)mm
Digital PID controller : reliable precision temp. control & easy to use
Control panel : timer and digital temp. display
Single body type bath(no welding joint) : corrosion proof
Lidded system : maintain regular temp.
Bottom heater and controller design : effectual large space & equal temp.
Full digital microprocess system – optional

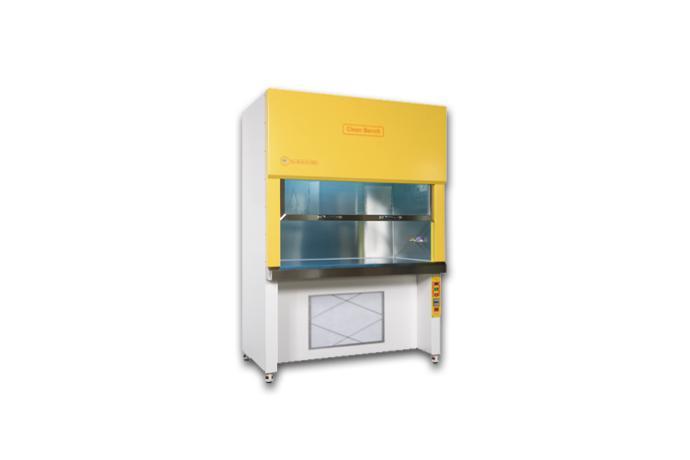

Item No. | MDM-0228 | MDM-0229 | MDM-0230 |
Model | KL-130S | KL-150M | KL-180L |
Dimensions | 1,320(W) × 750(D) × 1,900(H)mm | 1,500(W) × 750(D) × 2,250(H)mm | 1,800(W) × 800(D) × 2,250(H)mm |
Type | Vertical Air Flow Type | ||
Control type | Digital PID Controller | ||
Airflow | 0.3 ~ 0.5m/sec | ||
HEPA filter | 0.3µm 99.7% Efficiency, Class 100 | ||
Pre-filter | Nylon Material | ||
External material | Steel plate with powder coating | ||
Internal material | Stainless steel(SUS 304) | ||
Lamps | 2ea FL lamps, 1ea UV lamp | ||
Equipments(optional) | Electric outlet / Gas cock / Water cock | ||
Power | AC 220Vac, 60Hz |
