This Modern Conventional Slabstock Line made by Metal Engineering Co. Ltd. in Korea offers easy to operate by computer and manual treatment for producing large rectangular foam blocks by Square system and Fall-plate section with low pressure one - shot system.
Metal Engineering`s Modern Conventional Slabstock Line offers slabstock producers working with the cheaper low-pressure technology process and high quality equipment.
This Modern Conventional Slabstock principle produces large, high, plate-topped blocks in a wide range of products and economical due to minimum wastage, lower cost down for the equipment of slabstock lines and maintenance and spare parts cost.
The mixer unit is stationary, With traverse system and extra fall-plate sections, conventional lay-down of the ready mixed chemicals will be able to eliminate pin holes in the foam block on the bottom-paper for approximate 1 meter before starting expend, and better density distribution for high quality, Economical waste for chemicals through the variable shaped fall-plate system and square system.
Metal Engineering offers the integrated network connection for preventing plant downtime.
- Low production cost
- Low maintenance cost
- Low buildings
- Gives the best reproducibility
- Gives the best density distribution
- Excellent foam quality

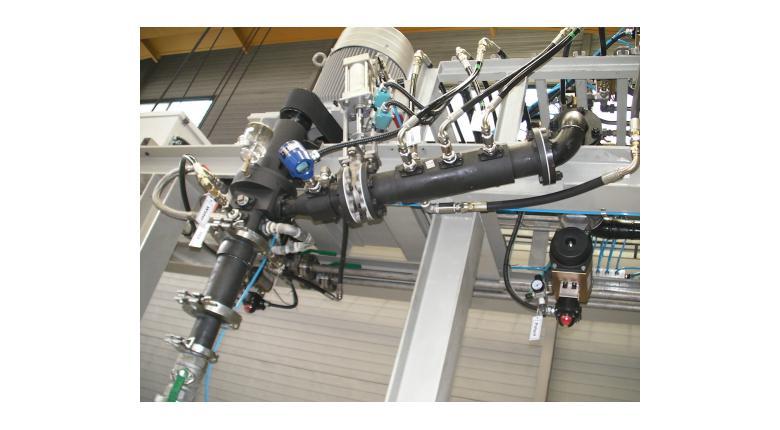

Mixer Portal has
- Equipment of manifolder for simplifying mixing chamber connecters
- Check valves at each streams for safe streams
- Pin stirrer controlled maximum 5000 rpm
- Pouring pipe for lower shock mix-head
- Adjustable height of traverse
Fall-plate has
- 5-6 section for variable shape
- Adjustable angle control by 2 - 5 degree
- Adjustable width control by 1300 - 2400 mm
Square Device has
- High or down and forward or backward adjustable according to foaming profile
- Simple and lighten weight
- Reinforcement for side paper tearing by hi-den film tube

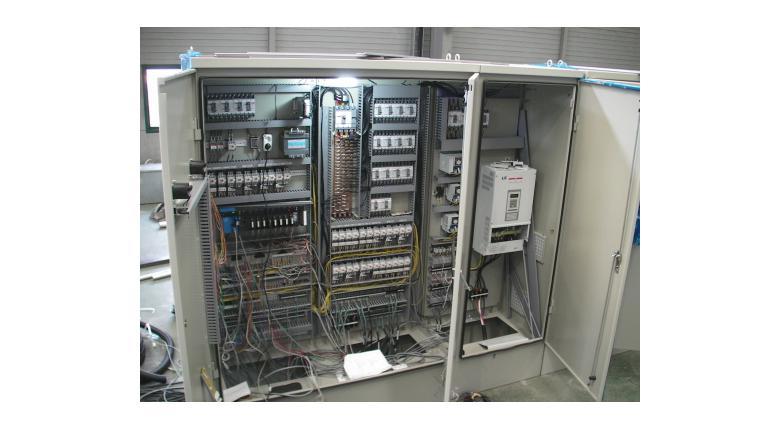

Operating system has
- Computer for storing data relevant to production
- Monitor for viewing of every data for running
- Programming system for connecting labor spot and office
