Carrousel Splitting Machine
Model Name
MCS-5400/640
Data
-
Manufacturer information
provider logo
Metal Engineering

Cutting machine, Sponge manufacturing machine, Poly urethane manufacturing facility, Foaming machine and more

Problem with product info?
Update request
Manufacturer
Metal Engineering
Brand
-
SKU
44395
Product Name
Carrousel Splitting Machine
Model Name
MCS-5400/640
Size
-
Weight
-
Product Details

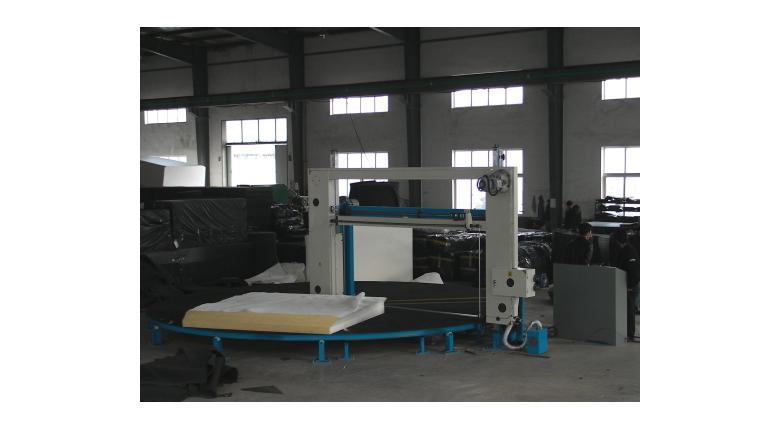

The Carrousel Cutting machine was built for horizontally cutting many rigid and flexible polyurethane blocks on the table automatically.
 There is turning circular table for cutting. So the machine can cut many blocks at same time for more productivity.
 It is suitable for continuously cutting works from top to bottom.

 Specification
 1) Table bacuum system
 2) Knife holder angle control-motor drive

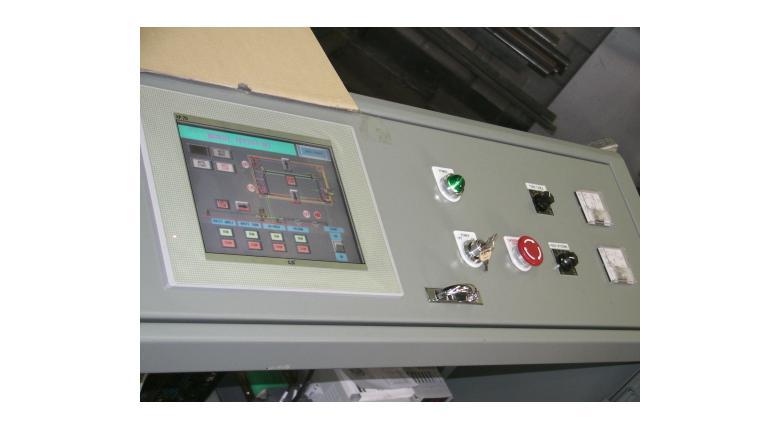

 3) Touch screen operation panel
 4) Automatic thickness control and counting system
 5) Up-down equipment : ball screw motor drive
 6) Gear driving turning table system
 7) Automatic error display function



model MCS-5400 MCS-640
table size

Ø1000 x Ø5400mm

Ø1000 x Ø6400mm

working width 1800mm 2400mm
working speed max'60m/min max'60m/min
working thickness 2~999 mm 2~999 mm
block load capa BLOCK(1000 x 2000)-6EA BLOCK(1000 x 2000)-8EA
knife 0.5T x 30B 0.5T x 30B
Metal Engineering
Cutting machine, Sponge manufacturing machine, Poly urethane manufacturing facility, Foaming machine and more
Since its establishment in 1995, we have been working on state-of-the-art machinery research and development related to the best technology in polyurethane foam production machinery sector. In particular, the domestic machine is not quite famous in the world market due to quality problems. However, as our exports in world markets proves the excellent quality, we compete with world leading companies, and improve productivity, as well as increase the competitiveness for customers by focusing on superior durability. Also we are sure that we become that world’s leading machinery manufacturing company and always stay as metal enterprising and creative people who are willing to drive it.
