4 Roll Section Bending Machine
Model Name
-
Series
Section Bending Machine
Data
Catalog-MG SRL-Section Bending Machine-4 Roll
Manufacturer information
provider logo
MG SRL

MG is the leading manufacturer of sheet bending machines in Europe: a strong brand, a leader in technical innovation and customer service, with a global footprint.

Problem with product info?
Update request
Manufacturer
MG SRL
Brand
-
SKU
129799
Product Name
4 Roll Section Bending Machine
Model Name
-
Size
-
Weight
-
Product Details

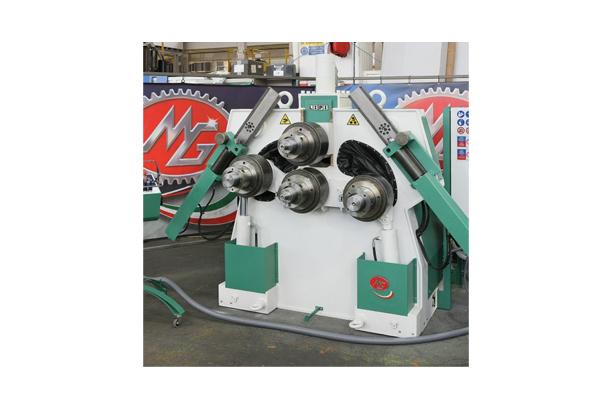

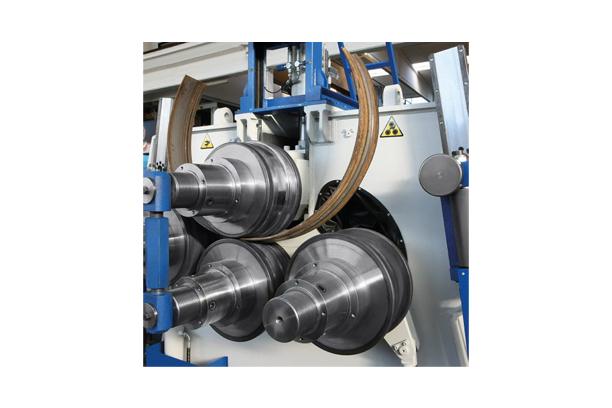

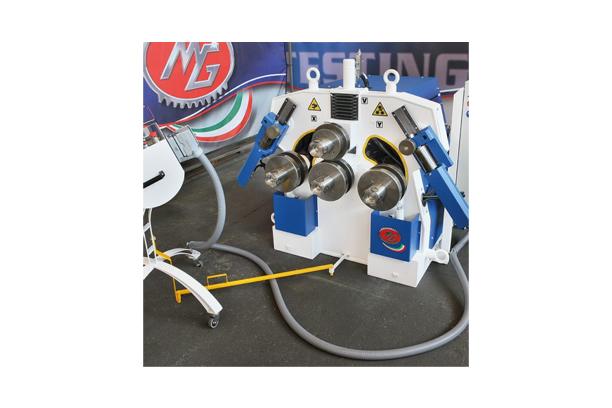

The 4 roll section bending machine range offers a wider distance between the side rolls allowing wider bending radiuses. Here, every secondary element is eliminated and the transmission of the torque results to be higher. The mechanical configuration of these machines also allows to minimize the flat parts at the ends of the profile.

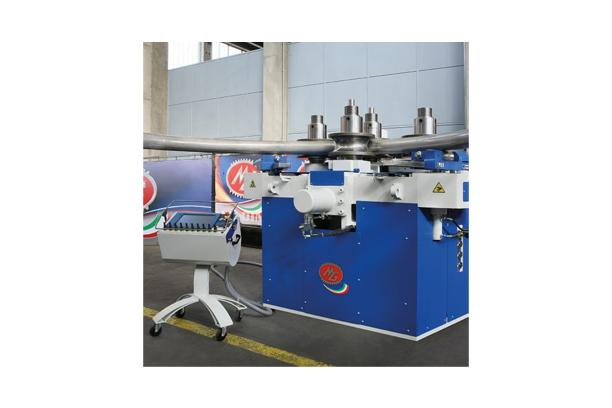

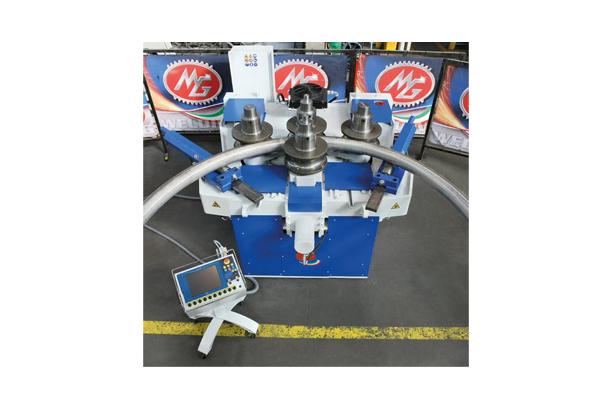

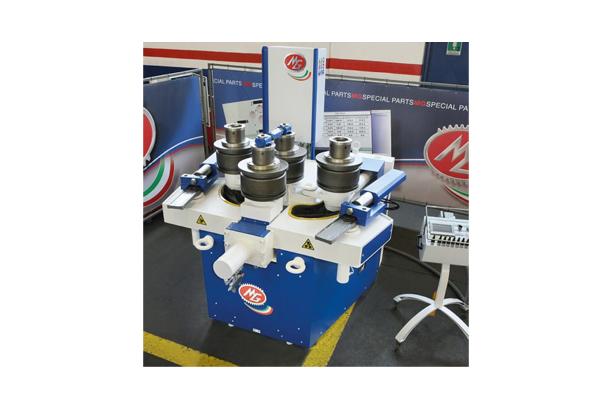

These machines are versatile for the possibility of working both vertically and horizontally.

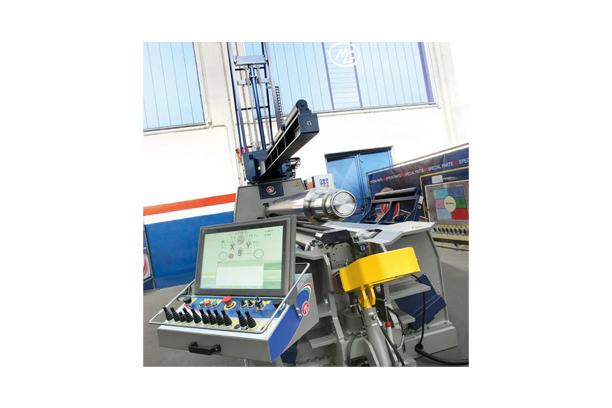

As per all MG machines, each component is pre-lubricated and sealed according to an exclusive system that guarantees lifetime lubrication. CNC automation is also possible on this kind of machine.

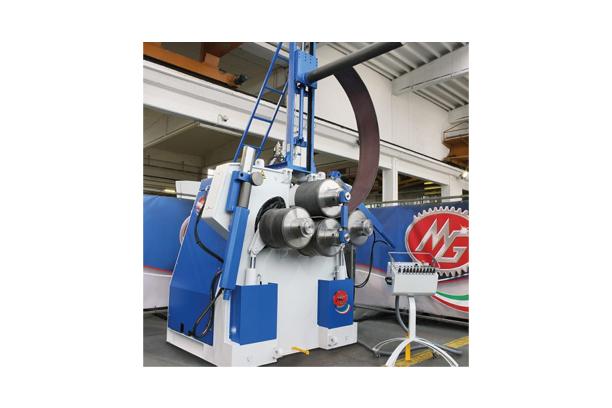

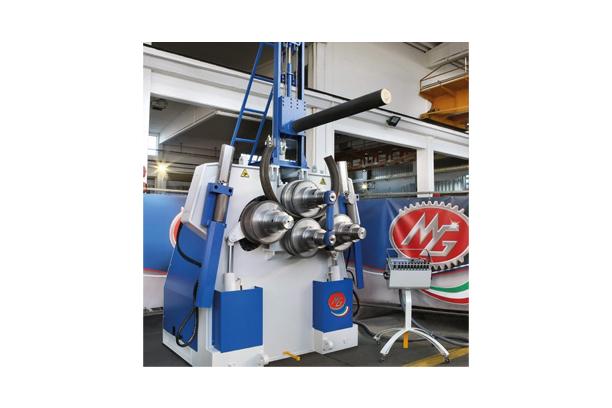

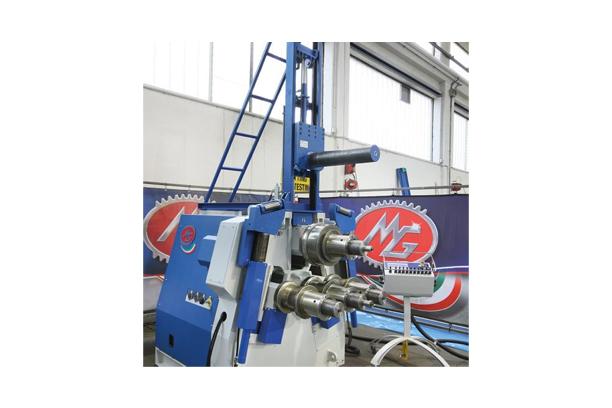

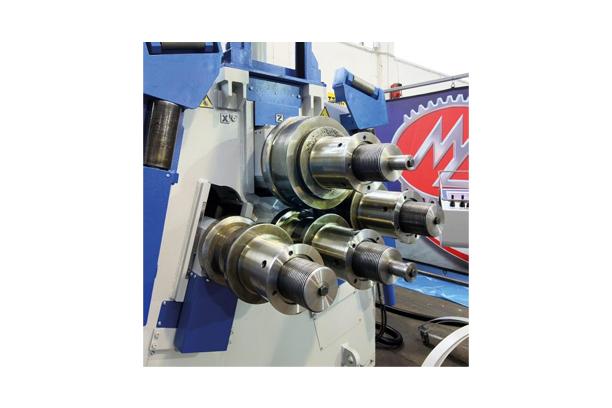

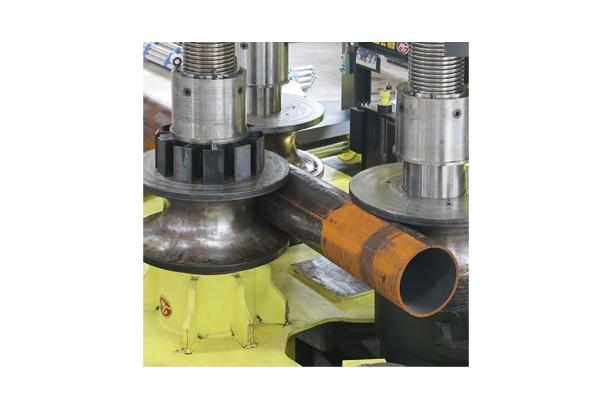

MG’s AR section rolls HT version for spiral pipes making has shorter shafts, reinforced motorisation to increase the power in order to obtain smaller diameters, side guides more powerful for better push and pitch control, in addition there is a small calibration roll in order to guarantee the pass precision, a front support with up/down and push/pull movement to give the operator a 360 degree control of the job. The aim of our engineers is to make the most of the machine accessories mechanical and hydraulic the same as if they were an extension of the operators arms but more powerful.


In ARL version the bending side rollers move on a rectilinear axis which reduces the space between the rollers themselves. In this way the pinching point of the profile between the lateral and the upper occurs in less space. The linear guides obtained by the machine structure allows to work smaller diameters with high precision, accuracy and stability. The straight part at the end of the profile is exceptionally reduced, the result is an optimal profile in all its parts.

MG SRL
MG is the leading manufacturer of sheet bending machines in Europe: a strong brand, a leader in technical innovation and customer service, with a global footprint.

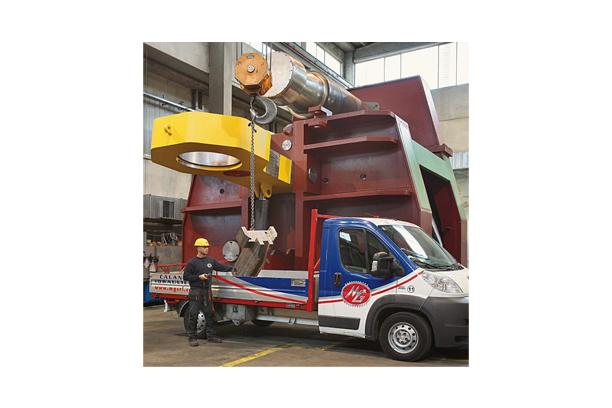

THE STORY The MG SRL was born in Fossano, in the Cuneo area, in 1959; founded by Giovanni Roccia and Bruno Giraudo, takes its first steps as a contracting workshop of the “Bongioanni Spa”. In 1981 the construction of bending machines for sheet metal and profiles began. A few years later, it allows to concentrate efforts and investments aimed at improving production. With a branch in Forlì, the leading company in the construction of sheet metal bending machines, has subsequently specialized under the guidance of the members Massimo Roccia and Giorgio Giraudo, sons of the founders, and Franco Barca who deals with the design in the branch. In 2010, with more than 60 employees – including many specialized technicians -, MG srl was the protagonist of the world scenario thanks to the creation of the largest grille ever built: the “MG32520Z”, it is 7,70 meters high, 7,10 meters wide, 13,70 meters long and weighs 350 tons, which allows it to bend sheets of sheet 3 meters wide 25 cm thick     TODAY In November 2011, MG srl becomes the protagonist of a technical and constructive renewal, thanks to the acquisition of Delsy Srl, currently 75% controlled, an Italian manufacturer of numerical controls, among the best known in the global panorama of the sector: thanks to this union, the MG machines become more reliable and beautiful, while maintaining the right quality / price ratio. With its 90 employees, on a surface of 6000 square meters covered and a total of 12,000 square meters of land, MG srl currently covers 60% of the Italian market and exports its machinery to the United States, Latin America, China, New Zealand, Emirates Arabic, Australia, Vietnam. MG bending machines are designed and manufactured to obtain performances equal to 3 times the diameter of their upper roll with 260N / mm2 yielding sheets and are able to meet any need for plate bending, through a wide range of models with useful working length from 500 mm to 8000 mm and capacity from 1 to 300 mm.       CERTIFICATES
