Features

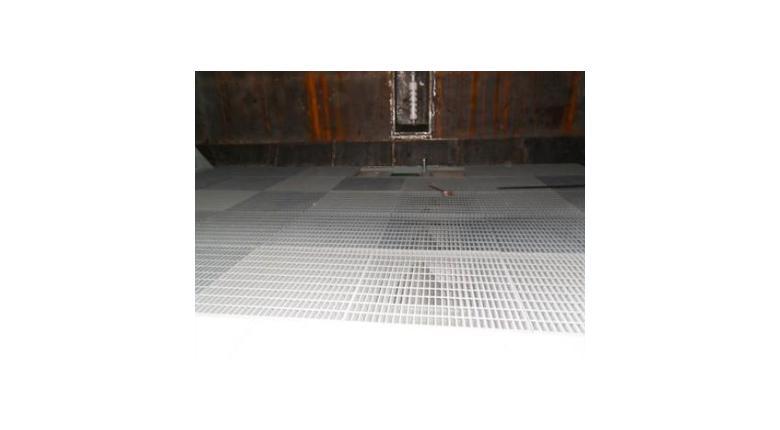

This facility is for descaling big sized steel structure and ship's block after moving into the air blasting room by transporter. The debris and dust are collected into the dust collector and steel abrasive is collected into the storage tank by recycling system, waffle cone and reclaimer recovery, and then resued.
- Continuous working hour for blasting : 6Hr
- Inspection : 1Hr
- Block in/out : 1Hr
- Blasting nozzle : Ø12.5 Venturi
- Abrasive size : Steel grit 0.7~1.0mm
- Air pressure : 8kg/㎠ or more
- Grit output pressure per nozzle : 7kg/㎠
- Grit output quantity per nozzle : Abt 2ton/hr

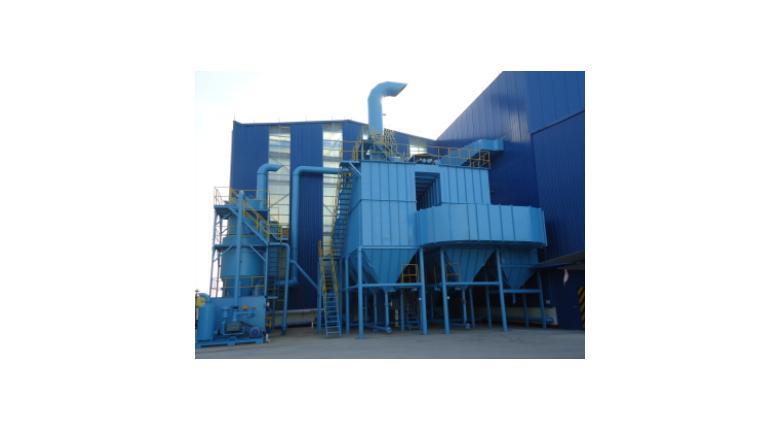

* The capacity of dust collector is decided as per the size of shot blasting room
