Auto Marking System
Model Name
-
Series
Automatic Shot Blast Machines
Data
-
Manufacturer information
provider logo
Mijin Industrial MachineryIndustrial machine facility manufacturer, Short facility, Painting facility, Environmental pollution prevention facility, Portable painting for Ship equipment, Automation facility and more
Problem with product info?
Update request
Manufacturer
Mijin Industrial Machinery
Brand
-
SKU
44060
Product Name
Auto Marking System
Model Name
Size
-
Weight
-
Product Details

This inkjet printer system specially designed for the pre-treatment line of a shipbuilder indicates characteristics of each material to be used after the next process, cutting by doing steel material identification and sub material labeling on a steel sheet after the process of shot blasting and painting, to make it easy to transport to the next process and decrease the error.



Features

  • Using MEK ink, very fast to dry, no spreading, beautiful print of characters, and high legibility even for small characters
  • RS232C serial communication: simple structure of a hardware and outstanding durability
  • Highest transmission speed 1Mbps: able to transfer any size of graphic at once
  • Centralized control system of driving PCB separation type: easy maintenance
  • Independent power: strong against noise or external impact
  • Appropriate design for shipbuilders’ working environment : -5~55℃ of temperature, 95% of humidity
  • Triple safety devices in case of poor conditions of a steel sheet
  • Powerful graphic user interface



Specification​n

Item

Standard Specification

Optional Specification

 Communication

 LAN, RS232C



 Memory

 8M Bite(80,000 characters)



 Driver

 Centralized control system

 of separation type



 Power

 Independent Power



Head Type

 TCS Type



 Ink Type

 MEK/High Speed Drying Ink



 Nozzle Pitch

 4mm

 2mm

 S/W

 Bitmap, Text

 Interlock with CAD(Intelligent)



Operations Flow chart

Mijin Industrial Machinery Auto Marking System



Control system Main program

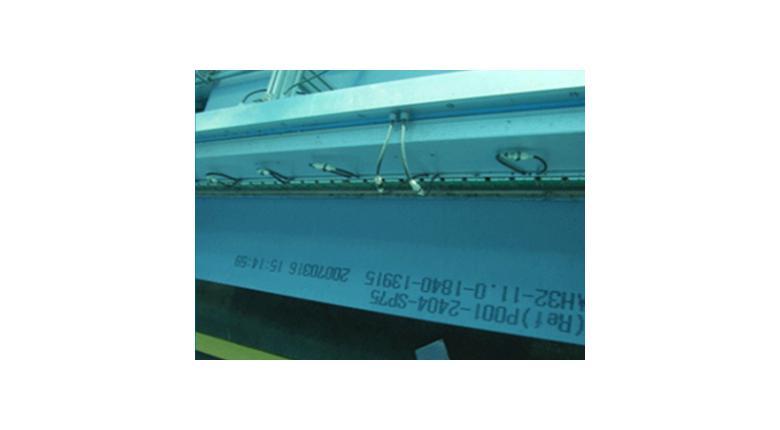

Mijin Industrial Machinery Auto Marking System  1

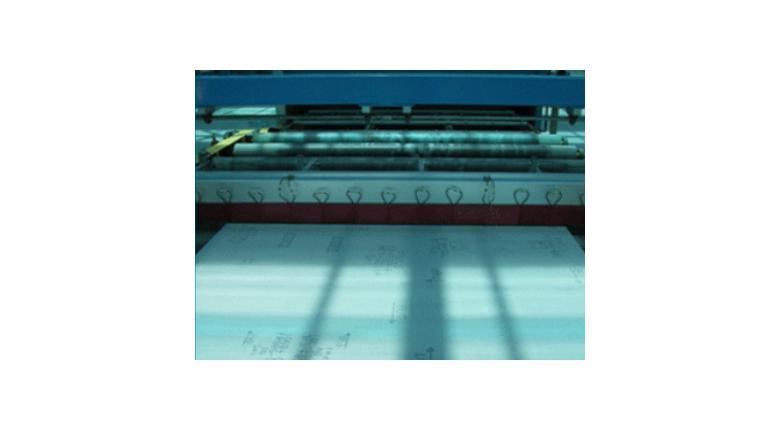

Mijin Industrial Machinery Auto Marking System  2
