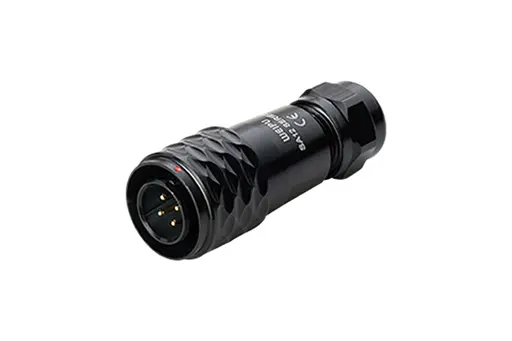

product Image

TOP

방수커넥트
Model Name
SA Series
Series
-
Data
-
Manufacturer information
provider logo
MOSTAR

MICRO COAXICA CABLE and RF COAXICAL CABLE Manufacturer

Problem with product info?
Update request
Manufacturer
MOSTAR
Brand
-
SKU
130240
Product Name
방수커넥트
Model Name
SA Series
Size
-
Weight
-
Product Details

Specification

Coupling Push-Pull
Shell material Anodized aluminum
Insert material PPS, Max temp. 260℃
Contact material Brass with gold plating
Termination Solder : SA6, SA8, SA10, SA12, SA16, SA20, SA28
Crimp : SA16, SA20, SA28
Screw : SA20, SA28
Cable outer diameter range SA6 : 3.5~4mm
SA8 : 4~5mm
SA10 : 4~6.5mm
SA12 I : 4~6.5mm, II : 5~8mm
SA16 I : 5~8mm, II : 8~12mm
SA20 : 8~12mm
SA28 : 13~16mm
IP rating IP67
Mating cycle 500
Temperature range -40 ~ +85℃
Insulation resistance 200MΩ
Rated Current and Voltage Rated Current : Up to 60A
Rated Voltage : Up to 500V
Certification CE, ROHS approval
