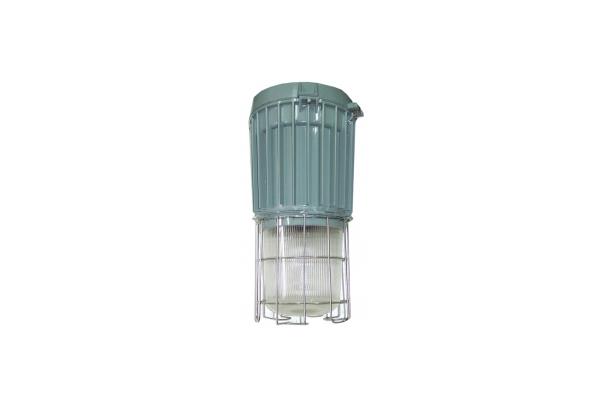

product Image
VZ (ExplosionProof)
Model Name
VZ
Series
H.I.D (Lighting Fixture)
Data
CATALOG-NAMBUK Electric-VZ
Manufacturer information
provider logo
NAMBUK ELECTRIC

Explosion Proof lighting Fixture manufacturer, Control station, motor starter, panel board and more

Problem with product info?
Update request
Manufacturer
NAMBUK ELECTRIC
Brand
-
SKU
119152
Product Name
VZ (ExplosionProof)
Model Name
VZ
Size
-
Weight
-
Product Details

Product Name

VZ (ExplosionProof)

Cateogory

Lighting Fixture-H.I.D

Model

VZ

Explosion Proof

Ex nR II T2 IP66, Class I Division 2 Group A,B,C,D, Class II Division 1,2 Group E,F,G, Class III Division 1

Conduit Size

1, 1/2, 3/4

Lamp

H.I.D Lamp

Rating

AC 110V/ 220V/ 240V (※See Below)

Watt

250W/ 400W


Standard Materials

▷ Enclosure : Die casting aluminium

▷ Globe : Heat resistant hard glass

▷ Lamp socket : Porcelain with screw shell

▷ Reflector : Aluminium sheet / Fiberglass-Reinforced Polyester

▷ Guard : Stainless steel


Feature

▷ Wide range of light sources to meet specific lighting needs - High Pressure Sodium (HPS): 250 and 400W, Mercury Vapour (MV): 250 and 400W, Metal Halide (MH): 250 and 400W
