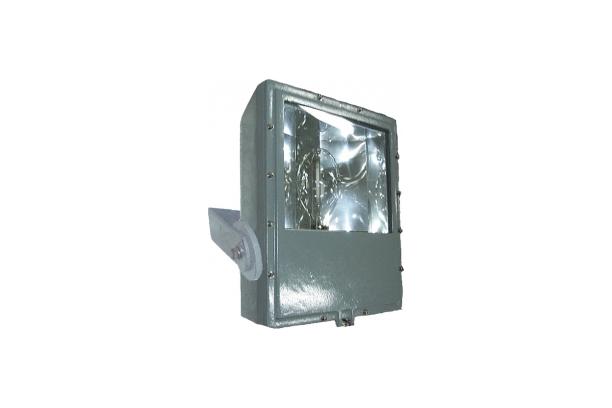

VRFD (ExplosionProof)
Model Name
VRFD
Series
FLOOD (Lighting Fixture)
Data
CATALOG-NAMBUK Electric-VRFD
Manufacturer information
provider logo
NAMBUK ELECTRIC

Explosion Proof lighting Fixture manufacturer, Control station, motor starter, panel board and more

Problem with product info?
Update request
Manufacturer
NAMBUK ELECTRIC
Brand
-
SKU
119190
Product Name
VRFD (ExplosionProof)
Model Name
VRFD
Size
-
Weight
-
Product Details

Product Name

VRFD (ExplosionProof)

Cateogory

Lighting Fixture-FLOOD

Model

VRFD

Explosion Proof

Ex nR II T3 IP66

Conduit Size

1, 1/2, 3/4

Lamp

Non Sparking

Rating

AC 110V/ 220V/ 240V (※ See Right)

Watt

150W/ 175W/ 200W/ 250W/ 400W


Standard Materials

▷ Housing : Cast aluminum alloy

▷ External hardware : stainless steel

▷ Yoke : Steel

▷ Lens : Heat and impact resistant tempered glass

▷ Gasket : neoprene

▷ Reflector : Semi-matt


Feature

▷ Heavy duty copper free aluminum housing with epoxy powder coat finish.Unique 3 piece housing design


Comment

▷ Accessary CAM : Crossarm Mounting Bracket. PWM : Pipe or Wall Mounting Bracket. SFM : Slip-Fitter


Dimension
