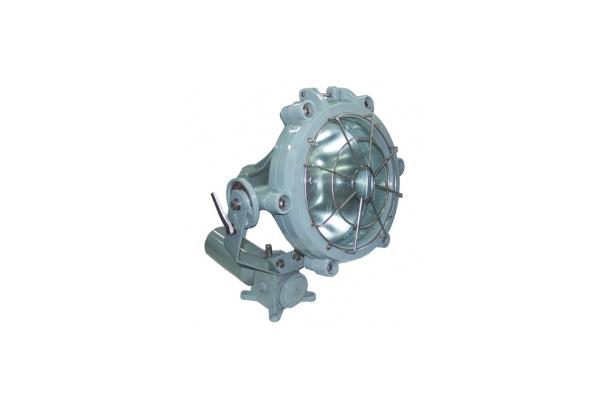

Product Name | EXFD (ExplosionProof) |
Cateogory | Lighting Fixture-FLOOD |
Model | EXFD |
Explosion Proof | Ex d IIB T3 |
Conduit Size | 1/2, 3/4, 1 |
Lamp | Flameproof |
Rating | AC110V/ 220V/ 240V (※See Below) |
Watt | 150W/ 175W/ 200W/ 250W/ 400W |
Standard Materials
▷ Enclosure : Cast aluminium alloy
▷ Globe : Heat resistant hard glass
▷ Reflector : High purity aluminium
▷ Guard : Stainless steel
▷ Ballast Housing : Steel
▷ Mounting Box : Cast aluminium alloy
▷ Wiring Tube : EFCX Flexible coupling
Feature
▷ The mounting box has a turning base plate on the top and a large access cover for wiring on the side
Photometric Data
Dimension
