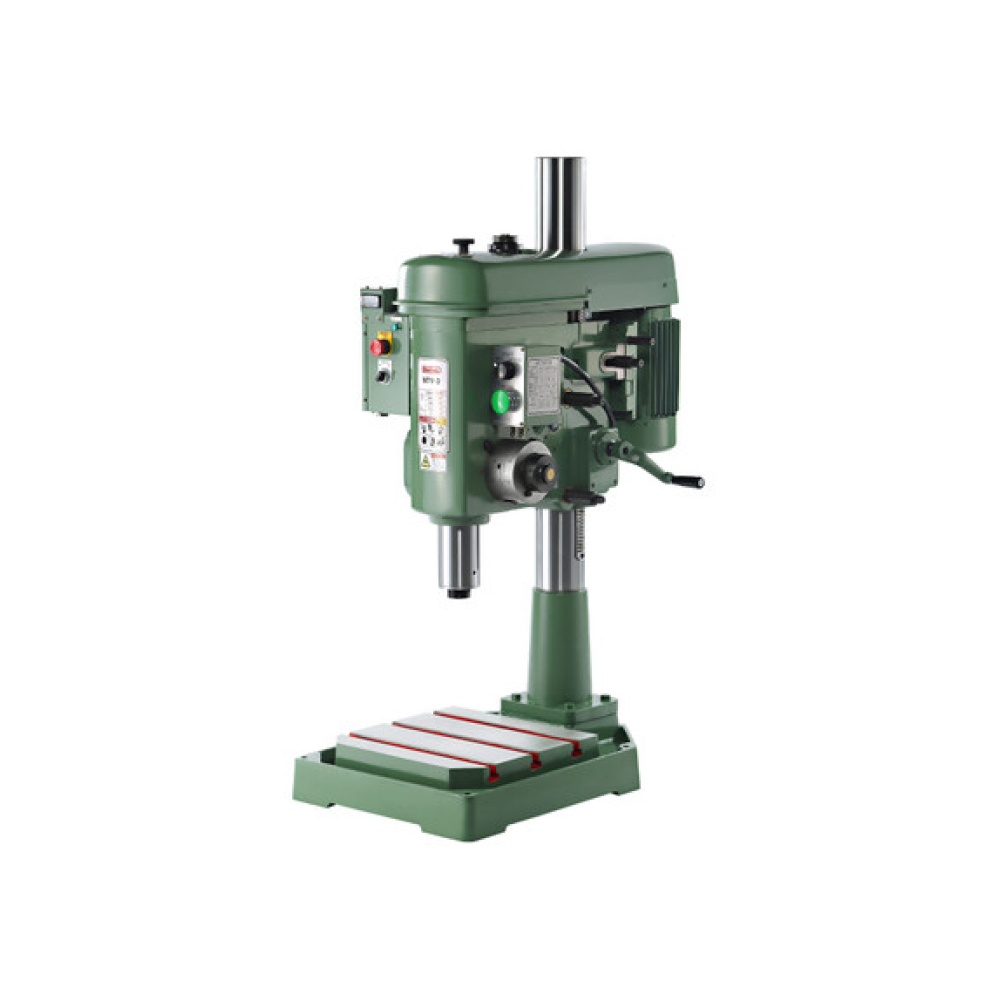

product Image

TOP

Automatic Tapping Machine
Model Name
NTV-1
Series
Automatic Tapping Machine
Data
-
Manufacturer information
provider logo
NAMBUKMetal machine tools manufacturer, Upright drilling Machine, Radial drilling machine, Milling machine and more
Problem with product info?
Update request
Manufacturer
NAMBUK
Brand
-
SKU
69921
Product Name
Automatic Tapping Machine
Model Name
NTV-1, NTV-2, NTV-3
Size
-
Weight
-
Product Details

특징

- 피치 기어에 의한 주축 1회전 당 피치 이송 절삭이 되므로 절삭 시간이 짧아 높은 생산성 발휘

- 이송 기구의 Back-Lash가 전혀 없어 높은 정밀 나사 가공이 가능

- 이소 기구에는 과부하 운전에 의한 안전 장치가 설치되어 있어 장비를 보호.

- 발판 스위치 조작으로도 자동 운전이 가능.



기계사양

Description

Unit

NTV-1

NTV-2

NTV-3

탭핑 능력

mm

M2 ~ M8

M4 ~ M16

M10 ~ M30

주축상하 이동거리

mm

55

65

75

주축단과 테이블의 최대거리

mm

536

566

665

헤드의 상하 이동거리

mm

500

500

507

주축 테이퍼

-

JT#2

JT#3

MT#3

작업면의 크기

mm

240 x 220

340 x 310

380 x 380

주축 모터

kw

0.4

0.75

1.5

주축 회전 속도(60HZ)

r.p.m

530~1600

220~710

70~280

기계중량

kg

98

143

254

기계의 크기(가로 x 세로 x 높이)

mm

450 x 300 x 912

580 x 400 x 1005

635 x 470 x 1405

 ※ 제품의 특성에 따라 주축 모터 및 주축 회전수 사양 변경(Option)이 가능합니다.
