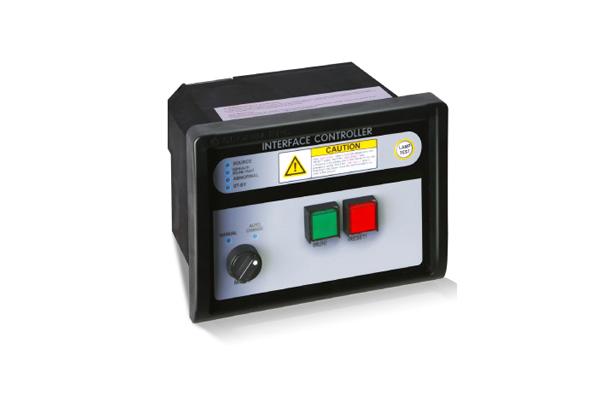

product Image

TOP

Motor Controller
Model Name
SRIC-110
Series
Electric & Electronic Dpt.
Data
-
Manufacturer information
provider logo
NASANDistribution system manufacturer in onshore and maritime, MCC, Main switch board, emergency switch board, distribution board and more
Problem with product info?
Update request
Manufacturer
NASAN
Brand
-
SKU
121513
Product Name
Motor Controller
Model Name
SRIC-110, SRIC-1100R, SRIC-1100H, SRIC-RH, SRIC-1200, SRIC-1200H, SRIC-1300, SRIC-1300H, SRIC-1400, SRIC-1400H, SRIC-2100C, SRIC-2100CH
Size
-
Weight
-
Product Details
Motor Controller

Our interface controller (SRIC-Series) is based on duplex communication network and providing both on-site control function and remote control system.

There are 4 models of motors (DOL, Reversible, 2Speed, Y-Δ) and those provide stand-by start feature. The reliability is assured by accredited certificate of complying international standard

TypeSRIC-1100S/SRIC-1200S/SRIC-1300S/SRIC-1400S/SRIC-2100S
CertificationDNV, ABS, LR, GL
EnclosureMaterialUL94 V-O / Glass fiber reinforced
Dielectric Strength31kV / mm
ColorBLACK (Maker Standard)
Temperature(℃)Ambient Temp.-25℃ ~ +55℃
Storange Temp.-25℃ ~ +85℃
Humidity45% ~ 85% R.H
Degree of ProtectionMounting for front doorIP54 With Packing
Connection TerminalMaterialUL94 V-O / Glass fiber reinforced
Wire Size(Max.)3.5 ㎟
Spacing Between Terminal9 ㎜
Connecting ScrewM4
Front Name PlateFront Name PlateEmbosing color plate
VibrationIEC/EN 60068-2-630Hz, Acceleration : ±0.7G(±7㎨)
Impact 10G
Protective TreatmentIEC/EN 60068-2-3012 Cycles/h
Resistance to
electromagnetic
discharge(kV)
IEC/EN 61000-4-2In open air:8. Level 3, On contact:4. Level 3
Immunity to radiated
electromagnetic
interference(V/m)
IEC/EN 61000-4-310. Level 3
Immunity to fast
transient bursts(kV)
IEC/EN 61000-4-42. Level 2(Realy output), 1.Level
Immunity to radio
electric fields(V)
IEC/EN 61000-4-63. (Other Circuit)
Immunity to shock
Waves(kV)
IEC/EN 61000-4-51. Level 2
