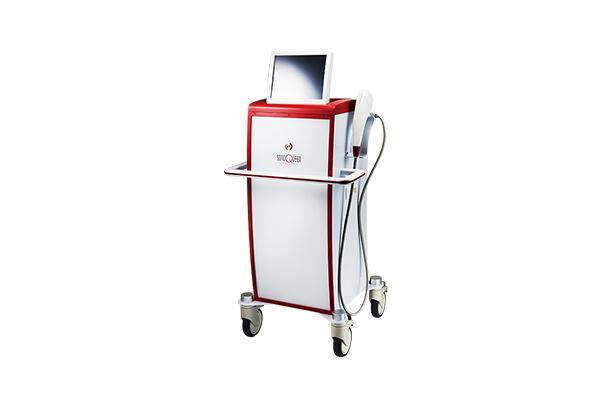

sonoQueen
sonoQueen delivers micro-focused ultrasound energy(up to 1.2J) to dermal and SMAS(superficial muscular aponeurotic system) layers in a non-invasive way using HIFU(High intensity focused ultrasound) technology for face lifting, skin tightening and wrinkle treatment.
sonoQuen procedure
Before sonoQueen |
SMAS lifting(4.5mm) |
Dermis lifting(3.0mm) |
After 90days |
Advantages
- Immediate and long-lasting results through optimal thermal energy and precise focusing
- Special JIG test (Phantom model) for stable output and effective thermal energy
- The most cost-effective consumables for earliest ROI
- Easy expandability for other applications
- Durable, non-toxic contact film (membrane)
Special JIG - Phantom
Purpose : confirmation to make the even TCP (Thermal coagulation point) and stable power under the facial skin.
lifting principle
Thermal coagulation shown in the photomicrographs of the sample has been generated by 60-70°C of heat at the focal point; and it is the technical characteristics of the HIFU device that does not induce any change through the layers from the epidermis to the coagulation point. The safety of the HIFU surgical unit can be assured as a therapeutic equipment since there was no detection of tissue injury around the irradiation area.
4.6mm from the surface -4Mhz, 0.7J coagulation size: 0.5x0.7mm |
4.6mm from the surface -4Mhz, 1.2J coagulation size: 0.5x0.9mm |
3.1mm from the surface -7Mhz, 0.7J coagulation size: 0.5x0.8mm |
3.1mm from the surface -7Mhz, 1.0J coagulation size: 0.5x0.8mm |
Specification
Energy source | HIFU(High Intensity Focused Ultrasound) |
Dimension(Stand) | (W) 516mm (D) 610mm (H) 1,140mm |
33kg | |
Dimension(Portable) | (W) 428mm (D) 370mm (H) 370mm |
6.7kg | |
Input power | AC 100~240V, 50/60Hz |
Cartridge | M4(Multi spot) : 4MHz, 4.5mm depth, up to 1.2J M7(Multi spot) : 7MHz, 3.0mm depth, up to 1.05J S4(Single spot, optional) : 4MHz, 4.5mm depth, up to 1.2J S7(eye type, optional) : 7MHz, 2.0mm depth, up to 1.05J |
Spacing | 1.2 mm |
Length | 25.0 mm |
Temperature (Thermal effect) | 44.0 ~ 71.0℃ |
** Main body 1, Handpiece 1, Power cord 1 Transducer M4, Transducer M7, Transducer S4(optional), Transducer S7(optional) Model : BT-600
Before&After
Application : Forehead, Lateral, Peri orbital, Cheek, Peri ortal, Double chin, Neck
