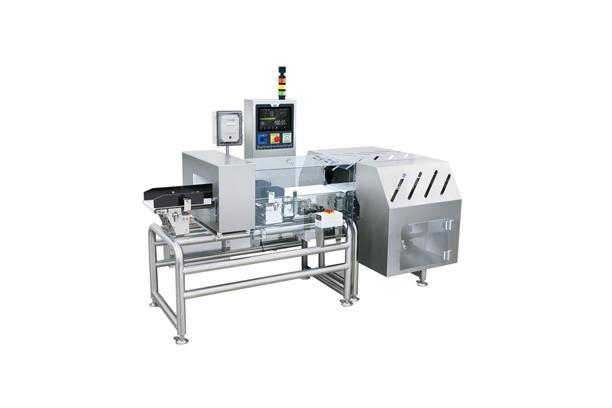

Combi (Metal Detector + Check Weigher)
Model Name
NCB-3000 Series
Series
COMBI(METAL DETECTOR + CHECK WEIGHER)
Data
-
Manufacturer information
provider logo
NOW SYSTEMS

Manufacturer of Metal detector, Automatic check weigher, Perimeter sewing machine and more

Problem with product info?
Update request
Manufacturer
NOW SYSTEMS
Brand
-
SKU
129349
Product Name
Combi (Metal Detector + Check Weigher)
Model Name
NCB-3000 Series
Size
-
Weight
-
Product Details


Information

NCB3000 Series (COMBO) is combination of a NMD530 Seires metal detector head and a NWC490 Series check weigher in one frame for cost effective and space saving purpose, providing superior and reliable product inspection in a compact design. NCB3000 Series combination metal detector and check weigher is the most technically superior combination unit on the market. The compact and fully accredited system saves valuable line space eliminating the expense of a separate conveyor for the metal detector.

The checkweigher measures product weight quickly and precisely - rejecting "out of tolerance" products, while the metal detector consitently detects and rejects contaminated products.

The easy to use full touch screen interface controls both machines, makes product change fast and simple. A clear benefit of a combined system is the low cost of ownership and the cost saving compared to a separate checkweigher and metal detector.


Outputs

> 8 Ports Outputs (AC or Dry Contact)

Power Supply

> Single Phase (110 to 220V) & Three Phase (220 to 380V and etc.,)

> Free Cycle (50/60Hz)

> Fuse (3A)

Operating Temperature

> 0℃ to 50℃

(advised to use the machine under normal temperature)




Metal Detector

High Performance for Metal Detection

> Closed Coil System for perfect detection

> High quality filter for more precise detection

> Auto absorption function for vibration, impact, noise and etc.,

> Dust Proof & Water Proof Standard (IP66) authentication


Multi Frequency Operation

> Supporting multi frequency operation mode that can measure various types of products with the correct operating frequency for maximum contaminant sensitivity in seconds




Phase Tracking Function

> Optimum detecting level is maintained by automatically coping with products of which phase is changed minutely, so detection is rather difficult such as frozen food




Full Color Touch Screen (7 inch TFT LCD)

> An intuitive and convenient full color touch screen, containing regional languages and user manual




Digital Signal Processing Function

> The adoption of 32-bit microprocessor has added more precise operation and performance of the equipment. Software filter technology to remove ambient noise affecting performance of a metal detector has been applied.




Exterior Design considering the convenience and aesthetics

> Modern and sensuous design in which both convenience and beauty are emphasized at the same time


Connectivity to External Devices

> Backing up inspection history and etc., by using a USB removable disk and reviewing the data on a PC.

> Monitoring real-time operating status for multiple metal detectors through the connective access to LAN.

> Interlocking the machine to various typed external devices through RS232C & 485 port.




Auto-Setting Function of the Inspection Items

> Auto-setting the machine for a testing product with the most suitable values even for beginners


Setting Function of a Variety of Items for Convenient Operation

> Up to 100 kinds of products are registered with each different setting value for convenient operation.


Manageable Metal Detecting History

> Detection history by various classifications and periods (in a daily / weekly / monthly / period-specified way)

> Data on detection history accessibility by LCD screen, USB disk and Printer (Optional).


Easy Software Upgrade

> Easy software upgradability by USB and touch screen whenever the latest version is available




Check Weigher

Full Color TFT LCD Touch Screen(10 inch TFT LCD)

> An intuitive and convenient full color touch screen, containing regional languages and user manual



Digital Signal Processing Senosr(32 Byte Microprocessor)

> Greater accuracy at high speeds can be obtained using 32 byte microprocessor which allows filter characteristics to be set automatically


Dynamic Calibration

> Dynamic calibration displays correct weight if there is discrepancy between the ready status and operational weight displays.


Auto/Manual Zero Adjust

> Zero adjustment can be performed by the operator before start-up or product changeover. Also, Automatic Zero adjustment is programmed to occur at regular intervals during production.


Built-in Temperature Change and Noise Compensation Circuit


3 Kinds of User Level Passwords

> 3 Kinds of User Levels (Operator, Quality Manager & Engineer Menu) can be set depending on possible operational functions.


3 Kinds of Operating Screens

> 3 Kinds of Operating Screens (Basic, Graph & Simple Screens) are provided depending on user taste.


No More Paper Manual Book

> On-the go user manual on the screen guides the operator through necessary set-up and operational procedure on each stage.


Selectable Conveyor Belt Type

> Either plastic chain belt or urethae belt can be selected for applicatioi


Easy Production Record Statistic Function

Internal Memory and USB Disk Backup / Recovery

Display & IOB Board Firmware Update




Movie Clip


Combi Unit (Metal Detector + Check Weigher) for Nuts



Combi Unit (Metal Detector + Check Weigher) for Drinks


Combi Unit (Metal Detector + Check Weigher) for Fertilizer


Double Combi Unit (Metal Detector + Check Weigher) for Double Lane
