PILLARS OF CREATION

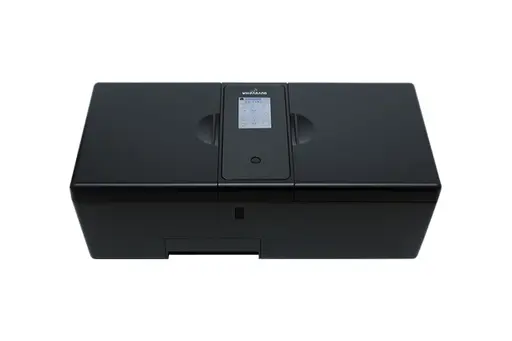

Humidity Control Fine Dust Measuring Device

Model

Series

Dust Measuring Device

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

FEATURE

Improved Accuracy of Light Scattering Fine Dust Sensor

Existing products

Moisture in the atmosphere distorts the sensor’s measured value, reducing data reliability

This product

improved data accuracy and reliability by adopting an algorithm that can correct for the effects of moisture

DIFFERNTIAION

Product Differentiation

Improved sensor accuracy by using average value by introducing triple sensor
Introduction of sensor signal correction algorithm technology to reduce errors caused by humidity
Adoption of reference sensor for sensor malfunction prevention and sensor life check

Improved sensor performance by designing a signal processing circuit board
Simultaneous measurement of PM10, PM2.5, temperature and humidity with one device
Development of integrated GUI for PC-based control

DETAILS

MADE IN KOREA

Developed / Produced 100% in Korea
The product is developed, produced, and managed 100% in Korea with rigorous quality management and reliable A/S.

HOW TO

Description and Operation of Each Nomenclature

POWER AND EXECUTION

Power on automatically when you plug in the cord.
Even if the power is turned off while the cord is connected, the humidity control device works.
Connect the line connected to the product to the computer USB.
Execute the <User Installer> provided by Whiparang
Click the ‘CONNECT’ button at the top left to check the real-time data.
You can download it as a file by clicking the ‘EXCEL’ button in the upper right corner.

SPECIFICATIONS

Brand name	Whiparang
Model name	PoC2020
CPU	Microchip 18F65K40
DUST Sensor	Nova Fitness Nova PM sensor SDS011 / 8EA
Range of Measurement	0 ~999㎍/m3 (PM2.5 / PM10)
Size	540 mm X 250 mm X 180 mm
LCD	Nextion Screen Size : 3.5" inch Digital TFT LCD (LED) Display Format :480×320 pixel
T/H Sensor	ETH-01D
Dehumidification Module	DTA-56-12-DHC
Current Consumption	4A Max (When the dehumidifier is operating)
Temperature and Humidity Range of Measurement	-25 ℃ ~60 ℃ / 0~90 %
Fine Dust Measurement Method	Laser light scattering
Temperature of Usage	-10 ~ 60℃
Power	12V(DC), 12.5A
