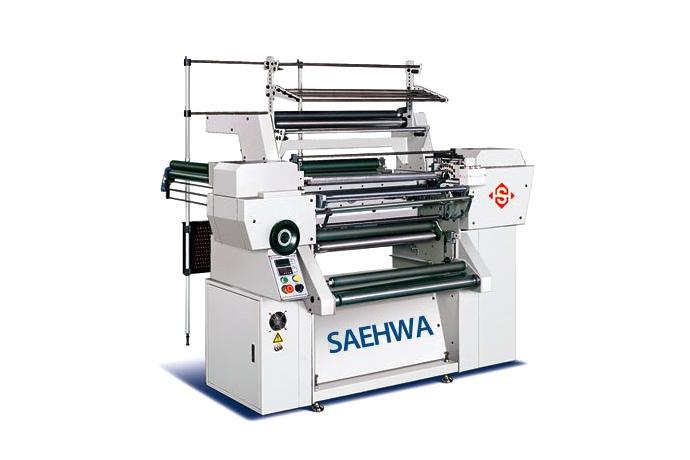

CROCHET KNITTING MACHINE (High speed FANCY YARN & for ELASTIC BAND)
- Spec : YH-1000L
- Operating Space : 24",30"
- Gauge : 15Gauge(Standard) / 20, 18, 13 Gauge(Option)
- Weft Bar : 8 Bars
- Motor Spec : 1.5kw(2HP)
- Lubrication System : Trochoid pump
- Cutter Type : -
- Operating Speed : Max 1500
- Waft Yarn Device : Eccentric carn Type 2 Levers
Pattern Chain Type 8 Bars
- Finished Product : Box Callecting Type
- Yarn Broke Sensor : Wire Dropper Touch Type
- Tension ControlL : Adjusting Roller Device
- Yarn Guide Device : Flat Reed Device
- Creel Device : 352~528 Bobbin(44 Step)
- RPM ControlL : Inverter
