Product Details

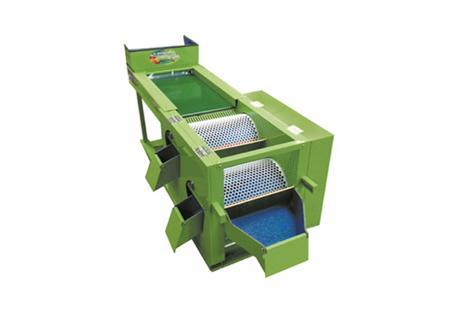

Blueberry Sorting Machine (SBB-30M)
DESCRIPTION
• Not stuck in the machine.
• Appropriate machine for small farm.
• No damage to the blueberries.
SPECIFICATION
• Sorting Grade: 14~30mm
• Sorting Speed: 100kg/h
• Voltage: 220V
• Sorting Type: Blueberry, Blackberry
• Dimension: 2000x730x800
Blueberry Sorting Machine (Conveyor type) (SBB-3000M)
DESCRIPTION
• No damage to the fruit surface.
• Able to check dust and damage of fruit on the conveyor
• Shock-resistant belt
• Not get stuck
• Speed adjustable
SPECIFICATION
• Sorting Grade : 10~39mm
• Sorting Speed : 2000kg/h
• Voltage : 220V
• Sorting Type : Shape
• Fruit Type : Plum, Cherry Tomato, Blueberry, Chestnut, Walnut.
• Dimension : 5700X1300X1000
Dial Type Fruit Sorter
DESCRIPTION
• Move dial to measure the weighting grade and sort.
• Not easily breakdown
• Highly efficient in weighting fruit.
• Easy operation and labor-efficient.
Model and specs of Dial Type Fruit Sorter
Company Name Grade Speed Accuracy Motor Power Dimension SBC-880M 8 2ton/h +/-3g 0.4kw/220V 4920x1800x1100 SBC-1000M 10 2ton/h +/-3g 0.4kw/220V 5620x1800x1100 SBC-1200M 12 2ton/h +/-3g 0.4kw/220V 6320x1800x1100 SBC-1200M 14 2ton/h +/-3g 0.4kw/220V 7020x1800x1100 SBC-1600M 16 2ton/h +/-3g 0.4kw/220V 7720x1800x1100
| Company Name | Grade | Speed | Accuracy | Motor Power | Dimension |
|---|---|---|---|---|---|
| SBC-880M | 8 | 2ton/h | +/-3g | 0.4kw/220V | 4920x1800x1100 |
| SBC-1000M | 10 | 2ton/h | +/-3g | 0.4kw/220V | 5620x1800x1100 |
| SBC-1200M | 12 | 2ton/h | +/-3g | 0.4kw/220V | 6320x1800x1100 |
| SBC-1200M | 14 | 2ton/h | +/-3g | 0.4kw/220V | 7020x1800x1100 |
| SBC-1600M | 16 | 2ton/h | +/-3g | 0.4kw/220V | 7720x1800x1100 |
PC Control Type Fruit Sorter
DESCRIPTION
• Controlled by PC.
• Highly efficient in weighting fruit
• Easy operation and labor-efficient
• Accurate sorting in +/- 2g
SPECIFICATION
• Sorting Grade : 10,12,14,16 grades
• Sorting Speed : 15,000PCS/h
• Sorting Precision : +/- 2g
• Sorting Type : weighting
• Fruit Type : Apple ,Melon, Pear, Peach, Tomato
Model and Specs of Dial Type Fruit Sorter
| Company Name | Grade | Speed | Accuracy | Motor Power | Dimension |
|---|---|---|---|---|---|
| SB-10(A) | 10 | 12000EA/h | +/2g | 0.75kw/220V | 7300x3200x1100 |
| SB-12M(A) | 12 | 12000EA/h | +/2g | 0.75kw/220V | 8000x3200x1100 |
| SB-14M(A) | 14 | 12000EA/h | +/2g | 0.75kw/220V | 8700x3200x1100 |
| SB-16M(A) | 16 | 12000EA/h | +/2g | 0.75kw/220V | 9400x3200x1100 |
Roller press Type Livestock Sludge Separator (SBD-170M)
DESCRIPTION
• Easy to operate with low electric power
• Highly efficient to separate livestock sludge by belt press type
• Easy to set the machine on the small space
SPECIFICATION
• Processing Power(t/h) : 7~15
• Power(kw) : 0.75
• Weight (kg) : 370
• Dimension (LxWxH): 2200x1700x1100
Both Electrical and Mechanical type Fruit Sorter
DESCRIPTION
- - The world’s first electrical and mechanical type
- - Can be used in mechanical type in case of electrical type failure
- - Can be used electrical type after repair (No blank period)
- - Two Methods of electrical and mechanical type of one mechine
Model and Specs of Dial Type Fruit Sorter
| Company Name | Grade | Speed | Sorting Range | Accuracy | Motor Power | Dimension |
|---|---|---|---|---|---|---|
| SEC-800MA | 8 | 5,800/h | 20g~1300g | +/-3g | 0.2kw/220V | 5,375 |
| SEC-1000MA | 10 | 5,800/h | 20g~1300g | +/-3g | 0.2kw/220V | 6.080 |
| SEC-1200MA | 14 | 5,800/h | 20g~1300g | +/-3g | 0.2kw/220V | 6,780 |
| SEC-1400MA | 14 | 5,800/h | 20g~1300g | +/-3g | 0.2kw/220V | 7,510 |
| SEC-1600MA | 16 | 5,800/h | 20g~1300g | +/-3g | 0.2kw/220V | 8,220 |
More products
제작공정
판금생산제품
철강가공유통
드럼형상 선별기SBH-60M-D
대추 선별기SBH60MB-S, SBH60MB-L
매실 선별기SBH60M-S, SBH60M-L
블루베리 선별기SBB30M, SBB3000M
단호박, 대봉 선별기SB08A, SB10A, SB1200A, SB1400A, SB1600A
추다이얼식 선별기SBC1000M, SBC1200M, SBC1400M, SBC1600M
전자식 캐리어 선별기SB10M, SB12M, SB14M, SB16M
주문형 전자선별기
단호박, 구근류 (무, 당근) 세척기SBN-100C
과일세척기
농업용수 정수, 정화 장치
가축분뇨 고액분리기SBD-170M
마늘 선별기
Fruit separator manufacturer, Separator for Plum, Apple and Peach, Dryer and more
Samboo Steel Co., Ltd. was established in 1984 as a distributor of sheet metal and steel cutting services. We have expanded our business to higher technology sector with engaging R&D.
One of our newly developed business is the intelligent fruit sorting machinery. We provided sorting machineries of all types of fruit such as apples, melons, pears, peaches, tomatoes and pumpkins.
With long experience and advanced R&D, we have developed the fruit sorting machineries which sort fruits by their weight, shape and grading. We are proud of their efficiency, precision and high quality matching our reputation of TOP-3 sorting machinery maker in Korea. There are several types of machinery and typical types include the Dial type and the PC control type. Both are easy to operate.
Recently, we started to produce a Blueberry Sorting Machine and began to export our products to countries including Japan and China. We are planning to expand our export business with the machinery and will continue to put our efforts in research and development for more competitive fruit sorting machineries, pursuing shared growth with our customer.
