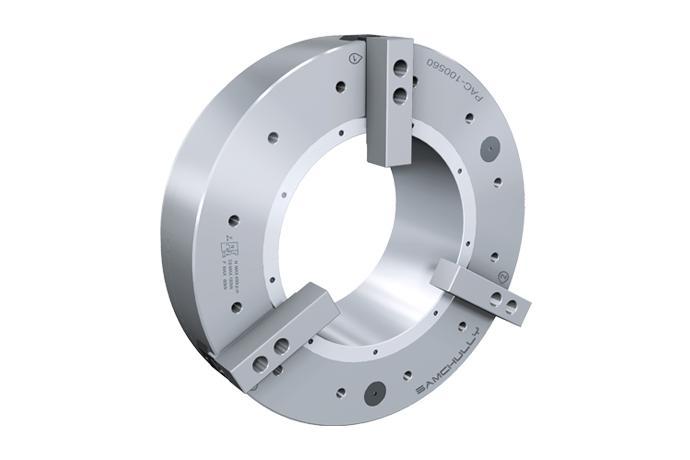

product Image

TOP

Mega-Bore Pneumatic Self-Contained Chuck
Model Name
PAC
Series
Power Chuck
Data
PAC
Manufacturer information
provider logo
SAMCHULLYHydraulic cylinder, Power vise, Scroll chuck, Drill, Tapping M/C, Drill chuck, Index, Rotary table and more
Problem with product info?
Update request
Manufacturer
SAMCHULLY
Brand
-
SKU
35315
Product Name
Mega-Bore Pneumatic Self-Contained Chuck
Model Name
PAC
Size
-
Weight
-
Product Details

PAC

Mega-Bore Pneumatic Self-Contained Chuck

Suitable for large pipe machining, Full spindle through-hole can be used
Built in air cylinder maintain the air pressure during machining
Clamping pressure level constantly checked by a safety control system



Spec

  PAC-47191 PAC-50230 PAC-60275 PAC-63325 PAC-85375 PAC-10056
   Thru Hole Dia.  [mm]   191 230 275 325 375 560
   Jaw Stroke Dia.  [mm] Total 20 25.4 25.4 25.4 25.47 25.4
Rapid 13 16.9 16.9 16.9 13.47 15
Clamp 7 8.5 8.5 8.5 12 10.4
   Operating
   Pressure
 [MPa]]   2~8 2~8 2~8 2~8 2~8 2~8
   Clamping Force
   (6MPa)
 [kN]   115 170 180 280 200 280
   Max. R.P.M.  [min-¹(r.p.m.)]   1300 1300 1100 900 750 450
   Weight  [kgf]   190 325 355 505 970 960
   GD²  [N·m²(kgf·m²)]   9.8 16.1 20.6 35.1 105 157.6
