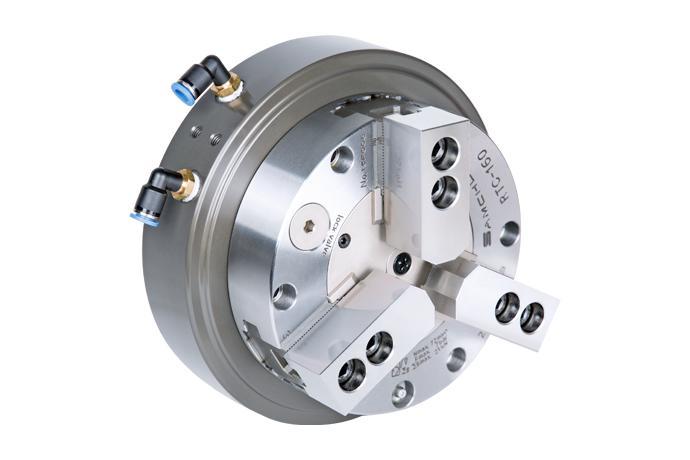

Rotary Table Chuck
Model Name
RTC
Series
Power Chuck
Data
RTC
Manufacturer information
provider logo
SAMCHULLYHydraulic cylinder, Power vise, Scroll chuck, Drill, Tapping M/C, Drill chuck, Index, Rotary table and more
Problem with product info?
Update request
Manufacturer
SAMCHULLY
Brand
-
SKU
35316
Product Name
Rotary Table Chuck
Model Name
RTC
Size
-
Weight
-
Product Details

RTC

Rotary Table Chuck

Suitable for indexing machining, Power chuck jaws can be compatible
Sealed aginst coolant and chips
With built-in cyliner, less space and easy operation



Spec

  RTC-110 RTC-160 RTC-210 RTC-260
Thru Hole Dia. [mm] 8 20 30 43
Jaw Stroke Dia. [mm] 5.2 5.2 6.3 6.3
Plunger Stroke [mm] 11.3 11.5 13.7 13.6
Max. Static Gripping Force [kN(kgf)] 7.5 21 33 48
Max. Pneumatic Pressure [MPa(kgf·cm²)] 0.7 (7) 0.7 (7) 0.7 (7) 0.7 (7)
Max. R.P.M. [min-¹(r.p.m.)] 100 72 50 50
Weight
(included Soft Jaws)
[kgf] 7.3 22 27.7 42.5
GD² [N·m²(kgf·m²)] - - - -
