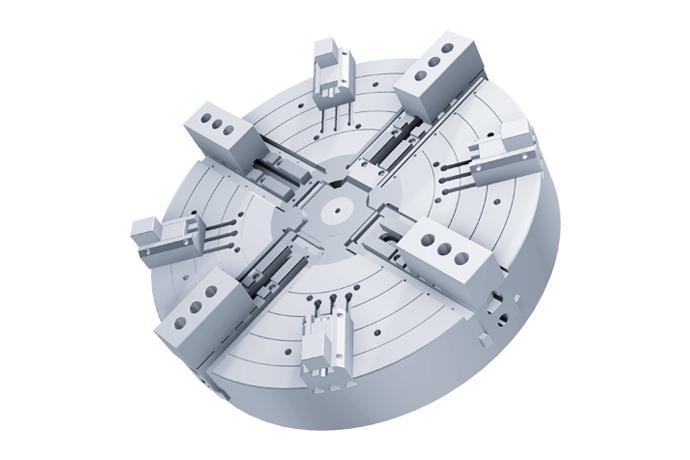

4-Jaw Double Wedge Hydraulic Chuck
For clamping round, cubic, pipe and geometrically irregular workpieces
Available with manual jaws
Concentric and compensating clamping by double wedge
Hardening treatment to assure greatest precision and longer chuck life
※◎ : Option | |||
HCWF-55 | |||
2 Step Manual Jaw Function | ◎ | ||
Jaw Stroke Dia. | [mm] | 48 | |
Manual Setting (Radial Chuck Jaw) |
40 | ||
Manual Jaw Stroke Dia. | [mm] | 60 | |
Plunger Stroke | [mm] | 60 | |
Grip Dia. | [mm] | Max. | 1400 |
Min. | - | ||
Max. Pemissible Input Force | [kN] | 120 (W1, W2) | |
Slider Length | [kN] | 210 (J1, J2) | |
Max.Gripping Force | [min-¹(r.p.m.)] | 400 | |
Weight | [kgf] | 1400 | |
GD² | [N·m²(kgf·m²)] | 355(36.22) | |
Operating Cylinder | DYV-21560 |
