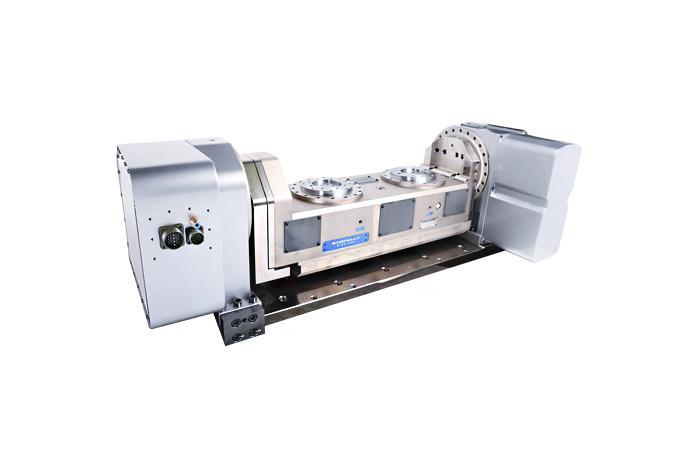

Mutil Spindle Tilting NC Rotary Table
Multi Spindle Titing Series, High Precision&High Speed Systems
Convenient JIG Design, Extremely Rigid Body, High Clamping power (Hydraulic)
MTR2-204F | ||||
Spindle Dia. | [mm] | Ø138 | ||
Center Height | [mm] | 275 | ||
Resister Dia. On face plate |
[mm] | Ø70 (138) | ||
Distance of Center | [mm] | Ø350 | ||
Clamp Method | Hydraulic Max. -bar | |||
Allowable Work Inertia | [kgm²] | - | ||
Net Weight | [kg] | 360 | ||
Rotating Axis | Tilting Axis | |||
Max. Spindle Speed | [mm-¹] | 25 | 25 | |
Gear Ratio | [mm] | 1/120 | 1/120 | |
Repeatabillity Accuracy | [sec] | 4 | 4 | |
Indexing Accuracy | [sec] | 40 | 60 | |
Clamp Torque | [N·m] | 800 | 1400 | |
Servo Motor | [FANUC] | αiF4 / 4000 | αiF8 / 3000 |
MTR2-254F | ||||
Spindle Dia. | [mm] | Ø178 | ||
Center Height | [mm] | 340 | ||
Resister Dia. On face plate |
[mm] | Ø100 (178) | ||
Distance of Center | [mm] | Ø400 | ||
Clamp Method | Hydraulic Max. 35bar | |||
Allowable Work Inertia | [kgm²] | 0.78 | ||
Net Weight | [kg] | 890 | ||
Rotating Axis | Tilting Axis | |||
Max. Spindle Speed | [mm-¹] | 33.3 | 25 | |
Gear Ratio | [mm] | 1/120 | 1/120 | |
Repeatabillity Accuracy | [sec] | 4 | 4 | |
Indexing Accuracy | [sec] | 40 | 60 | |
Clamp Torque | [N·m] | 900 | 1200 | |
Servo Motor | [FANUC] | αiF4 / 4000 | αiF8 / 3000 |
