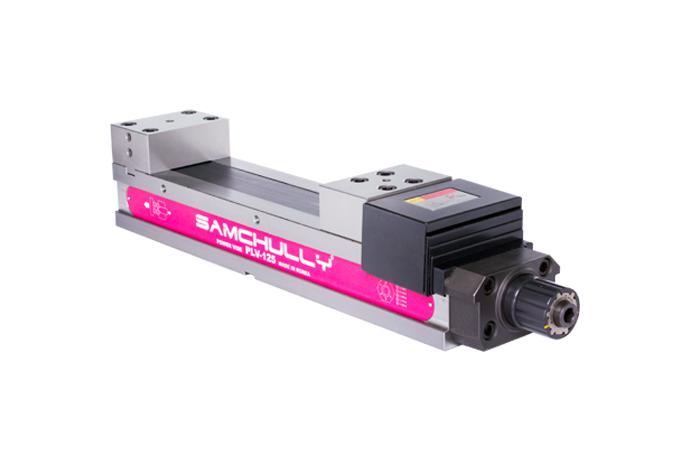

Long Stroke Power Vise
Long-body precision power vise with adjustable torque
PLV-125(5") | PLV-160(6") | PLV-200(8") | ||
Jaw Width | [mm] | 125 | 160 | 200 |
Jaw Height | [mm] | 50 | 60 | 70 |
Max.Opening | [mm] | 420 | 354 | 405 |
Total Height | [mm] | 135 | 160 | 180 |
Slider Height | [mm] | 85 | 100 | 110 |
Total Width | [mm] | 135 | 170 | 214 |
Slider Length | [mm] | 700.5 | 647.5 | 723.5 |
Max.Gripping Force | [kN(kgf)] | 35(3571) | 60(6122) | 60(6022) |
Weight | [kgf] | 47 | 70 | 110 |
