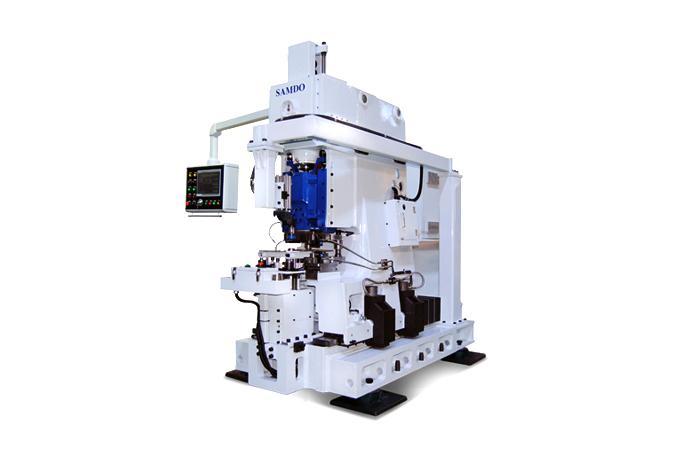

The characteristics of SDH-NP Seires
- Applied slide guide precision linear bearing
- Balance-keeping technology during high speed operation
- Technology in applying high load, high degree of precision bearing on crank axis
- High hardness frame manufacturing technology
- Large frame facility manufacturing technology
SDH-NP Seires Specification
Item | unit | Specification | |||||
---|---|---|---|---|---|---|---|
Capacity | Ton | 5 (50kN) | 10 (100kN) | ||||
Rating Point | mm | 1 | 1.5 | ||||
Stroke Length | mm | 20 | 20 | ||||
Stroke Per Minute | S.P.M | 200 ~ 1000 | 200 ~ 600 | ||||
Die Height | mm | 275 ~ 285 | 310 ~ 335 | ||||
Slide Adjustment | mm | 10 | 25 | ||||
Slide Area | mm | 200 x 155 | 130 x 190 | ||||
Bolster Area | mm | 460 x 260 | 580 x 260 | ||||
Frame Movement Length (Y-axis) | mm | 160 | 510 | ||||
Punching Distance | mm | 80 ~ 240 | 150 ~ 660 | ||||
Index Movement | ° | ~ 360° | ~ 360° | ||||
Number of index | - | 4 ~ 200 | 4 ~ 200 | ||||
Main Motor | kW | 7.5kW (2000rpm) | 11kW (1500rpm) | ||||
Frame Y-axis Motor | kW | 0.9kW (1500rpm) | 0.9kW (1500rpm) | ||||
Index Table Motor | kW | 5kW (3000rpm) | 7.5kW (3000rpm) | ||||
Skip Motor | OPTION | OPTION | 3.5kW (3000rpm) | ||||
Skew Motor | OPTION | OPTION | 0.6kW (1000rpm) |
