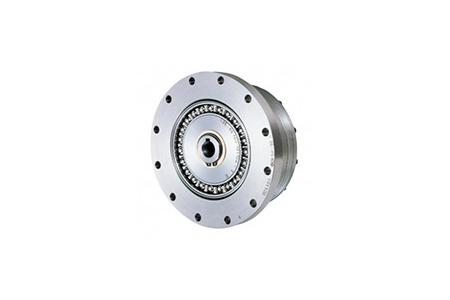

하모닉드라이브 (CSG 시리즈)
Model Name
CSG-2UH
Series
하모닉드라이브
Data
카탈로그-삼익HDS-하모닉드라이브 CSG-2UH
Manufacturer information
provider logo
SAMICK HDS

Harmonic drive manufacturer, Reducer, Precision reducer, Planetary reducer, DD motor and more

Problem with product info?
Update request
Manufacturer
SAMICK HDS
Brand
-
SKU
135760
Product Name
하모닉드라이브 (CSG 시리즈)
Model Name
CSG-2UH
Size
-
Weight
-
Product Details

제품특징

CSG시리즈는, CSF시리즈에서 개량된, 고 토크용 하모닉드라이브®입니다.

「부하 용량의 UP, 강도에 대한 신뢰성의 향상, 장수명화」를 개발 컨셉으로서, CSF시리즈의 동일한 사이즈에 비해 다음과 같이 성능향상을 실현했습니다.

정격 토크 : 30% up

기동 정지시 피크 토크 : 30% up

순간 허용 최대 토크 : 30% up

라체팅 토크 : 30% up

정격 수명 : 42% up (10,000시간)

외형 크기, 강성, 각도전달 정밀도, 입력 관성 모멘트(moment)등은 CSF시리즈와 동등.



제품사양


형식



정격표
