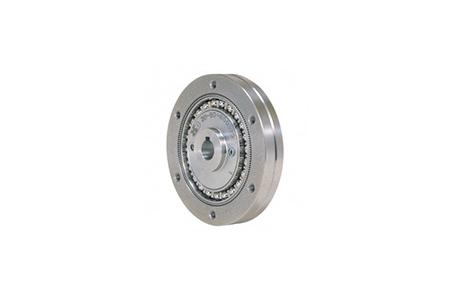

product Image
하모닉드라이브 (FB/FR 시리즈)
Model Name
FB
Series
하모닉드라이브
Data
카탈로그-삼익HDS-하모닉드라이브 FB
Manufacturer information
provider logo
SAMICK HDS

Harmonic drive manufacturer, Reducer, Precision reducer, Planetary reducer, DD motor and more

Problem with product info?
Update request
Manufacturer
SAMICK HDS
Brand
-
SKU
135770
Product Name
하모닉드라이브 (FB/FR 시리즈)
Model Name
FB
Size
-
Weight
-
Product Details

제품특징

FB시리즈 컴포넌트 타입은 편평,박형의 구조입니다.

구성부품은 4가지로 됩니다. CSG/CSF시리즈의 컵형과 동일한 원리로 동작합니다.

팬케익형(FB)의 경우 플렉스플라인의 형상은 컵형의 플렉스플라인의 밑바닥을 자른 형상으로서 출력을 전달하기 위해서 플렉스플라인과 같은 잇수의 서큘러스플라인을 하나 더 추가한 구조로 되어있습니다.

ㆍ FLAT

ㆍ 편형, 박형의 형상

ㆍ 컴팩트

ㆍ 심플한 디자인

ㆍ 우수한 위치결정정도와 회전정도

ㆍ 입출력이 동일 축상



제품사양


형식



정격표

SAMICK HDS
Harmonic drive manufacturer, Reducer, Precision reducer, Planetary reducer, DD motor and more
"Harmonic drive has excellent characteristics that other reducers do not have because of its original principle of applying the elastic mechanics of metals and the fact that it is composed of three basic parts" Samik HDS imports, manufactures and sells harmonic drives under a continuous cooperation system with Harmonic Drive of Japan. The main fields of application are robots, semiconductor manufacturing equipment, FA equipment... and even space, which holds the dreams of mankind. In addition, we are playing an important role in various mechatronics products, optical measuring instruments, medical devices, printing equipment, and other industrial and scientific fields by generating precise motion. With the support of our customers, we will continue to move forward by developing technologies that will support the 21st century.
