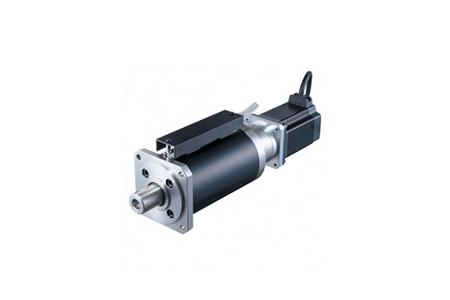

product Image

TOP

리니어 액츄에이터 (LAH 시리즈)
Model Name
LAH-46-1002-F
Series
-
Data
-
Manufacturer information
provider logo
SAMICK HDSHarmonic drive manufacturer, Reducer, Precision reducer, Planetary reducer, DD motor and more
Problem with product info?
Update request
Manufacturer
SAMICK HDS
Brand
-
SKU
135862
Product Name
리니어 액츄에이터 (LAH 시리즈)
Model Name
LAH-46-1002-F, LAH-46-3002-F
Size
-
Weight
-
Product Details

제품특징

LAH시리즈는 소형·고분해능·고추력을 겸해 갖춘 리니어 액츄에이터입니다.

최대추력 390N, 분해능 0.069μm의 『LAH-46(DC서보 모터 구동 타입)』과 최대추진력 3000N, 분해능 2μm의 『LAH-80(stepping motor 구동 타입)』의 2기종이 있습니다.



용도

정밀위치조정

액정판 제조 장치의 위치조정

정밀 검사

측정 장치의 위치조정

화상계측시의 워크 위치결정장치

정밀공작기의 공구 위치 결정

고정도 조립 로봇



특징

최대추력 : 390N (40kgf)

분해능 : 0.069μm

스트로크 : 10mm、30mm

최대이송속도 : 3.7mm/s

반복위치결정정도 : ±0.5μm/스트로크1mm

로스트모션 : 5μm/스트로크 1mm

※ 구동모터를 스테핑모터로 변경이 가능합니다.



제품사양
