Optical Repeater
Model Name
UDOR100VE
Series
Optical Repeater
Data
-
Manufacturer information
provider logo
Samji Electronics

Electronic parts manufacturer, Communication, Digital, PDA, Online game

Problem with product info?
Update request
Manufacturer
Samji Electronics
Brand
-
SKU
42376
Product Name
Optical Repeater
Model Name
UDOR100VE
Size
-
Weight
-
Product Details

1. Overview

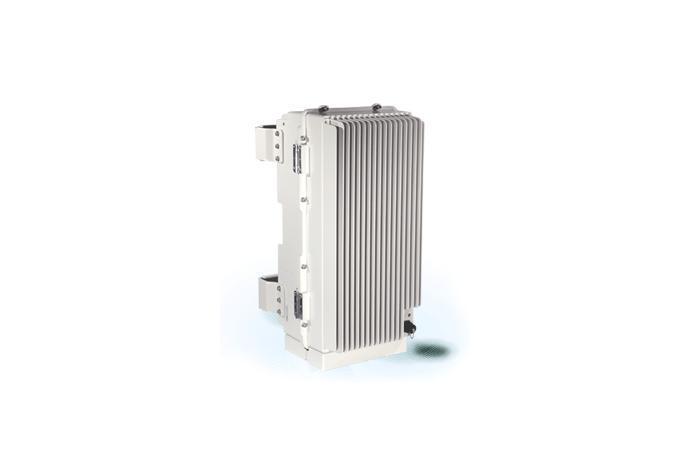

A Multi Band (800㎒/1.8㎓) optical repeater that used in large cities that has large telephone traffic and small town that the signal is weak, to expands the coverage of the base station and solve the issues with the area with weak signals


2. Characteristics

① Provide the service combining CDMA and LTE service.
②  Highly efficient due to superior linear current amplifier minimizing a loss due to spurious radiation characteristic.
③  The advantages of digital signal utilizing practical expandability (Multi-drop, Cascade).
④  The backup battery has the overdischarge and overcharge protection circuit
⑤  Monitoring, alarm function, control function, editing and equipment setting with wired and wireless communication and alarm history can be inquired using local GUI function



3. Specification

Order Item CDMA LTE
1 Frequency [MHz] FWD 1860~1870 884~894
RVS 1770~1780 839~849
2 Gain FWD 57dB 57dB
RVS 45dB 45dB
3 Input range FWD +5dBm/Total +10dBm/Total
RVS -65dBm/Total -65dBm/Total
4 Max. output FWD 45dBm/Path 43dBm/Path
RVS -20dBm/Path -20dBm/Path
5 Heat dissipation Natural Convection
6 Operating temperature -30℃ ~ +60℃ -30℃ ~ +60℃
7 Storage temperature -40℃ ~ +70℃ -40℃ ~ +70℃
8 Humidity 5~95% (Non-condensing) 5~95% (Non-condensing)
9 SIZE(mm) 290(W) x 607(H) x 341(D)
